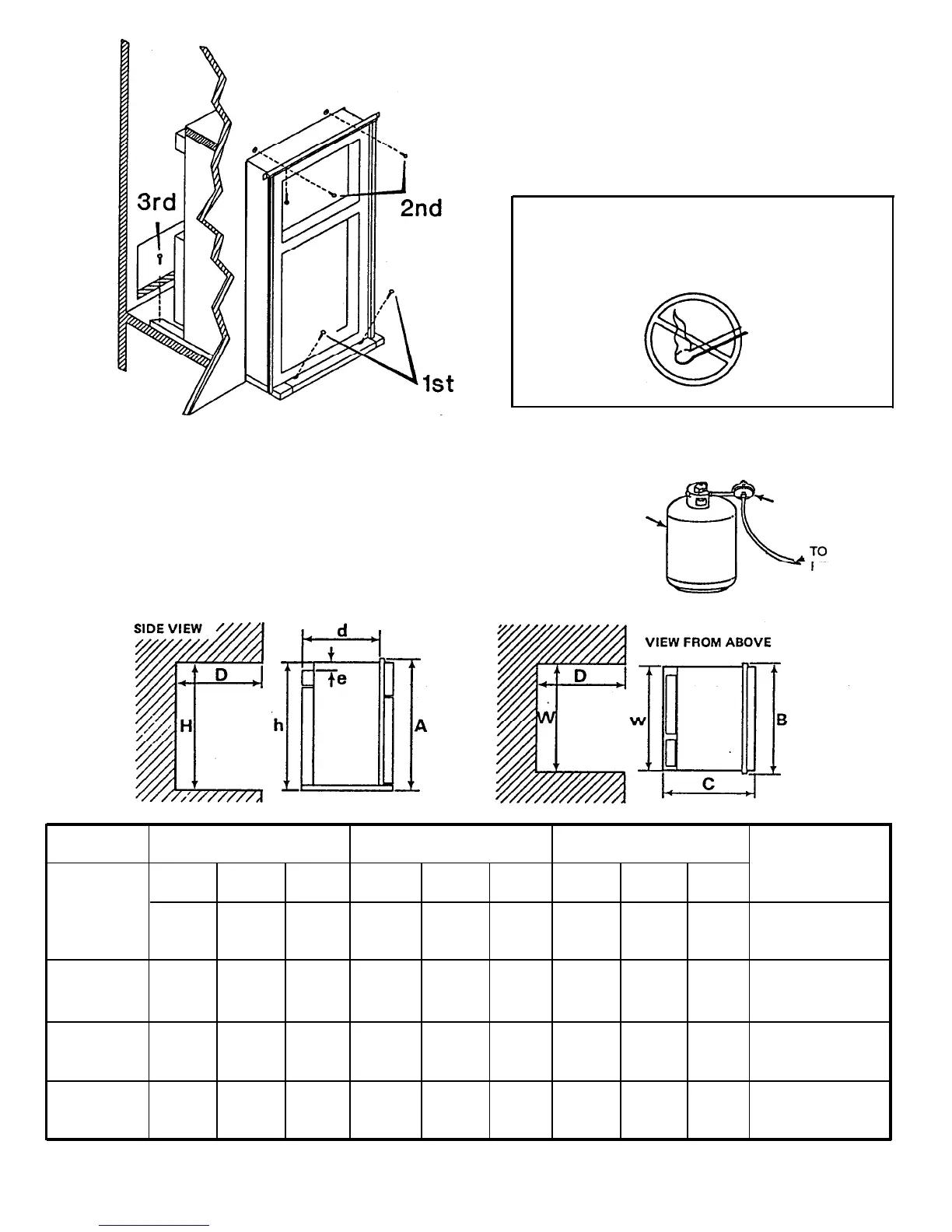

FIG. 4
The dimensions shown in the Table below will give you
adequate space for service and proper installation. See
FIG. 5.
8. GAS CONNECTION
Hook up to the gas supply line accomplished at the
manual gas shutoff valve, which is furnished with a 3/8"
SAE (UNF 5/8" - 18) male flare connection. All completed
connections should be checked for leaks with a non-
corrosive leak detector. (See FIG. 6 & 6A)
WARNING
DO NOT USE A FLAME TO CHECK
FOR GAS LEAKS.
The gas supply system must incorporate a pressure
regulator to maintain a supply pressure of not more than
11 inches water column.
PRESSURE
LP GAS
REGULATOR
CYLINDER
REFRIGERATOR
FIG. 5
Refrigerator Overall
Installation
Recess
Distance between
Model dimensions dimensions
dimensions
top of condenser
Height Width
Depth Height Width
Depth Height
Width Depth
and top of
A
B C
H
W D
refrigerator
H
W
D E
inch 33-1/2 22-53/64 24-1/2 32-7/32
21-1 7/32 23-1 9/32 32-7/16 21-1 3/1l 6 24-3/32
1-1/4
RM2410
mm 839 580 622.5 618
547 599
823 554 612
32
inch 40-29/32 22-53/64 24-1/2 40-3/32
21-1
7/32 23-1 9/32 40-5/1 6 21-1 3/1l 6 24-3/32
1-1/4
RM2510
mm 1039 560 622.5 1018
547 599 1023 554 612
32
inch 52-1/8 22-53/64 24-1/2 51-5/16
21-17/32 23-19/32 51-1/2 21-1 3/1l 6 24-3/32
1-1/8
RM2610
mm 1324 580 622.5 1303
547 599 1308 554 612
29
inch 58-1/32 24-23/32 24-1/2 57-7/32
23-7/1 6 23-1 9/32 57-7/16 23-1
1/16
24-31/32
1-1/8
RM2810
mm 1474 628 622.5 1453
595
599 1458 601 612
29
3
