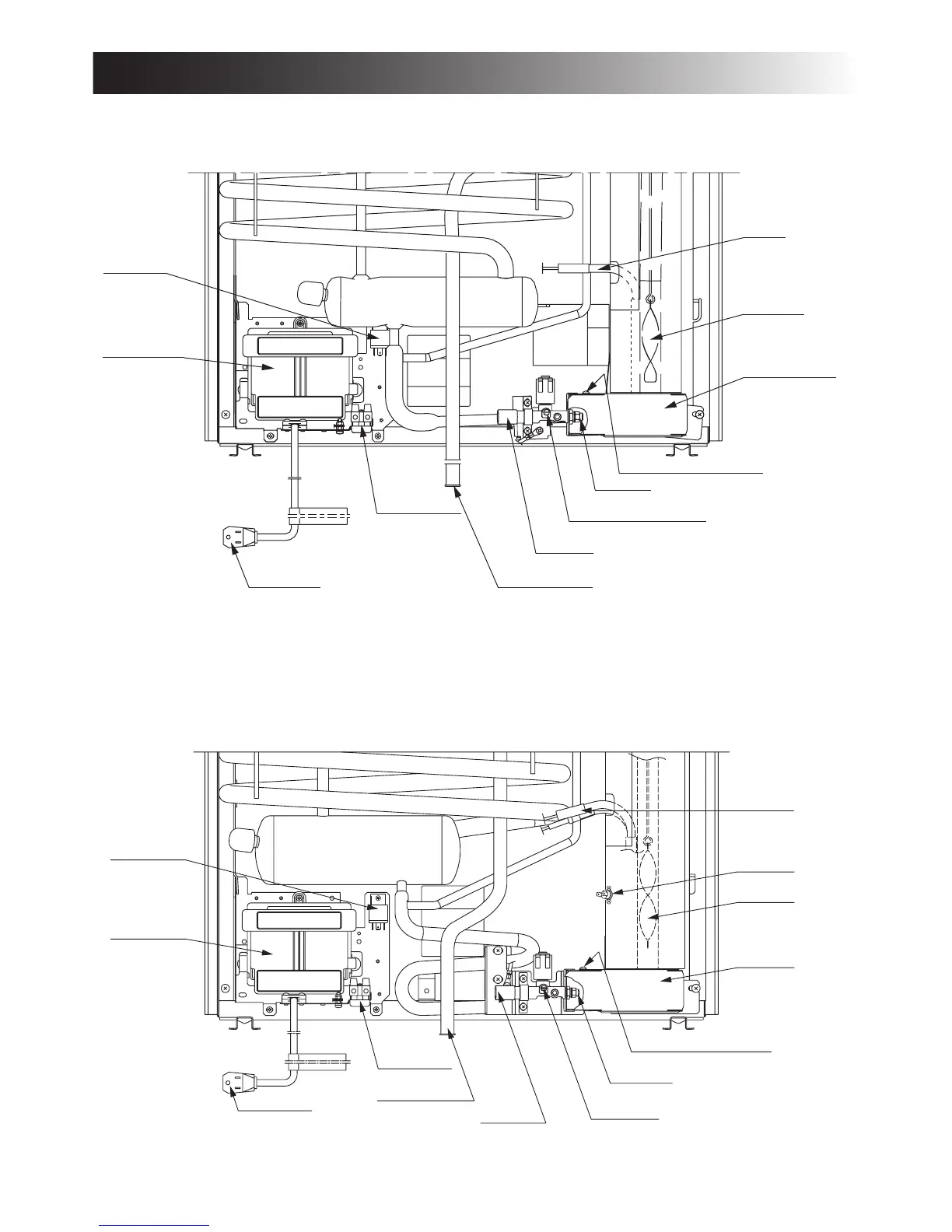

Dometic RM2554 - APPENDIX D - REARVIEW EQUIPMENT - PART 2; RM2451-RM2554 REARVIEW DIAGRAMS; DM2652-NDM1062 REARVIEW DIAGRAMS

- 32 -
12V DC
Relay,
3-Way only
Power module
cover
Flexible cord
12 volt DC
Terminal block
Drain water hose
Inlet fitting
Manual gas
shutoff valve
Burner jet
Screw for protection cover
Protection
cover
Flue baffle
Heater(s)
Thermofuse
Flexible cord
Power module
cover
Relay,
3-way only
12 volt
Terminal block
Drain water hose
Inlet fitting
Manual gas shutoff valve
Burner jet
Screw for protection cover
Heater
Flue baffle
Protection cover
12V DC
RM2451, RM2454, RM2551 & RM2554
DM2652, DM2662, DM2663, DM2852, DM2862, DM3862 & NDM1062
appendix d - rearView equipment
