2
Model No. A
*
B C D *** E F
**
G
RM1272 65 24 59-1/16 36-1/2 8 0 1
RM1282 65 24 59-1/16 36-1/2 8 0 1
RM2332 31 21-3/8 29-3/4 20-1/2 8 1 1
RM2333 31 21-3/8 29-3/4 20-1/2 8 1 1
RM2410 34 24 32-7/16 21-3/16 8 0 1
RM2452 37-3/4 24 36-9/16 23-11/16 8 0 1
RM2453 37-3/4 24 36-9/16 23-11/16 8 0 1
RM2510 42 24 40-5/16 21-3/16 8 0 1
RM2551 44-1/2 24 42-5/8 23-11/16 8 0 1
RM2554 44-1/2 24 42-5/8 23-11/16 8 0 1
RM2612 54 24 49-17/32 21-3/16 8 0 1
RM2620 54 24 49-17/32 21-13/16 8 0 1
RM2652 54 24 53-3/4 23-11/16 8 0 1
RM2812 60 24 55-7/16 23-11/16 8 0 1
RM2820 60 24 55-7/16 23-11/16 8 8 1
RM2852 60 24 59-15/16 23-11/16 8 0 1
RM3662 54 24 53-3/4 23-11/16 8 0 1
RM3663 54 24 53-3/4 23-11/16 8 0 1
RM3862 60 24 59-15/16 23-11/16 8 0 1
RM3863 60 24 59-15/16 23-11/16 8 0 1
NDR1062 60 24 59-15/16 23-11/16 8 0 1
NDR1292 65 24 59-1/16 32-3/4 8 0 1
NDR1492 65 24 59-1/16 36-1/2 8 0 1
Note: See Pages 10 through 15 for approved Dometic
Refrigerator Vent options.
Note: Options 1, 2, 3B, 3C, 3D & 3E require the bottom of the access
vent and floor to be at the same level.
Note: B, C & D inside dimensions are minimum installed dimensions.
Max.
Dim.
Min.
Dim.

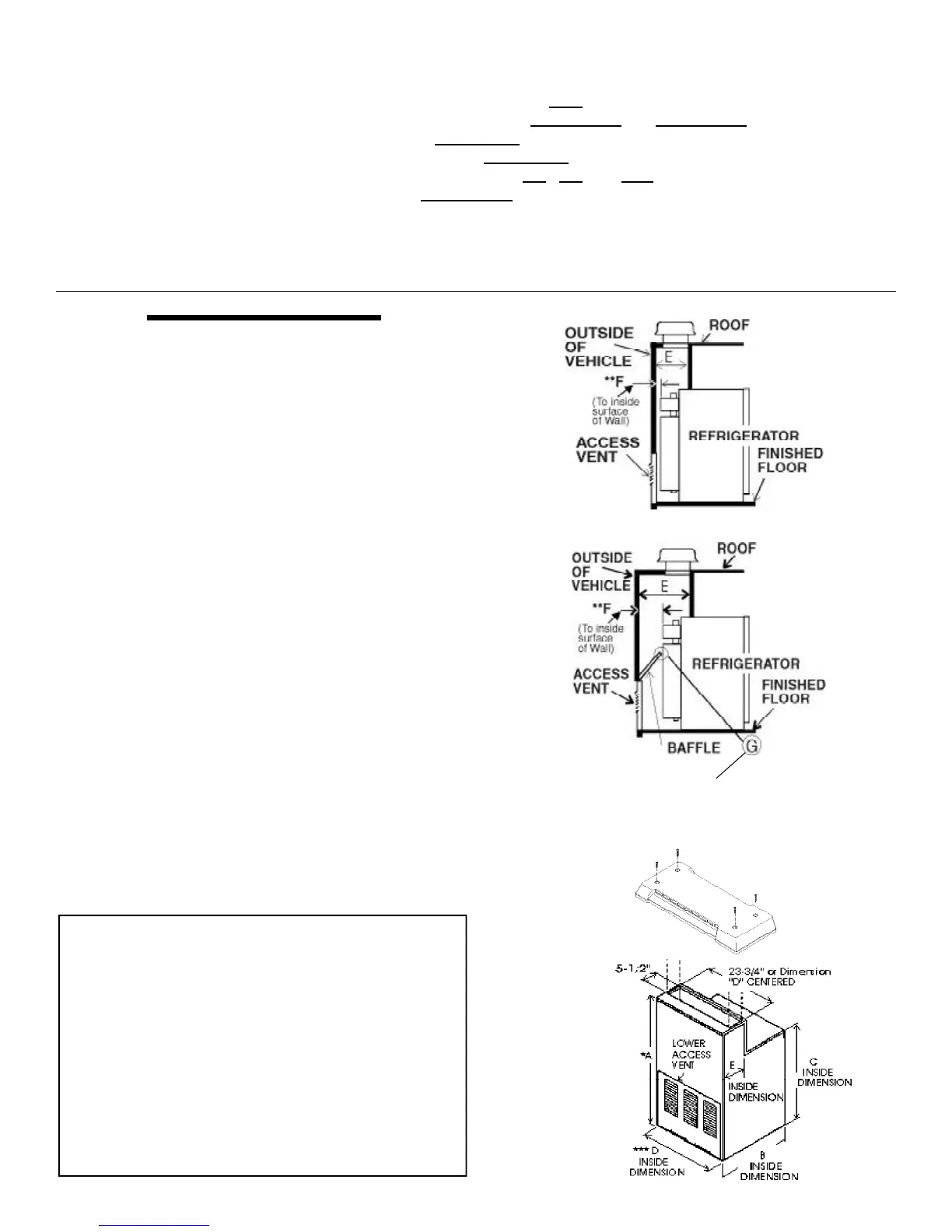

OPTION 1
G= CLEARANCE BETWEEN
BAFFLE AND COOLING UNIT
OPTION NO. 3
The Innovator Refrigerator Ventilator System
For optimum performance and where Installation Options No. 1 and 2 are NOT
possible:
A. Consists of power ventilator, one floor vent and one roof vent for double door
and side-by-side refrigerators.
B. Consists of power ventilator and two side vents for single door
refrigerators.
C. Consists of power ventilator and two plastic side vents for single door
models.
D. Consists of power ventilator and two side vents for double door 6 ft
., 8 ft. and 10 ft. models.
E. Consists of power ventilator and two side vents for side-by-side
models.
OPTION NO. 4
Consists of Two Side Vents
Natural draft side ventilation with the top side vent connected to the refrigerator flue. In minimum sized enclosures it prevents
the flue gases from raising the temperature at the rear of the refrigerator.
(Dimensions in Inches)
* 1. Dimension "A" is minimum. This dimension
may be increased for more efficient operation in
warm temperatures.
** 2. When dimension "F" is exceeded by more than
1 inch, it is required to add "Baffle/s" as shown
above lower access vent for more efficient
operation in warm temperatures.
*** 3. If the width of the refrigerator compartment
(Dimension "D") is less than 23-3/4", cut roof
vent to dimension "D". If the width of the refrig-
erator compartment (Dimension "D") is larger
than 23-3/4", cut opening to 23-3/4" but position
cutout to flue side of refrigerator.
Max.
Dim.
