Installing the refrigerator RUA5208X, RUA6408X, RUA8408X
20
I
Install the flue duct as follows:

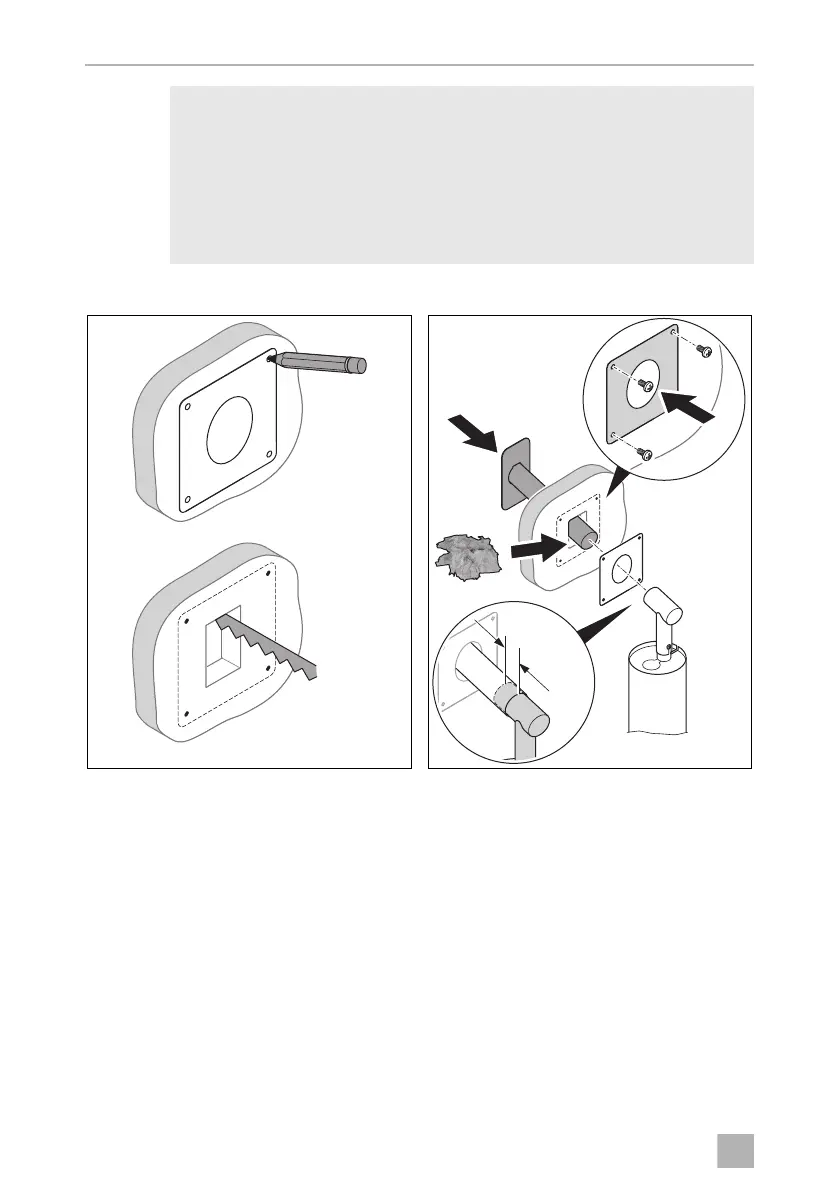

➤ Make a rectangular opening in the outer wall of the vehicle (fig. k).
– The opening must be as wide as the flue pipe (fig. j 3, page 19).
– The opening must be high enough that the flue pipe fits through at a 45°
angle.
➤ Insert the coil (fig. j 7, page 19) in the flue pipe (fig. j 8, page 19) of the
refrigerator.
➤ Place the T-piece (fig. j 4, page 19) on the adaptor (fig. j 5, page 19) and the
flue pipe (fig. j 8, page 19) of the refrigerator.
➤ Direct the T-piece at an angle of 45° towards the rear wall.
➤ Attach the T-piece, adaptor and flue pipe with a screw (fig. j 6, page 19).
NOTE
•
Install the Dometic gas flue kit 3776. Contact the customer service
(see back page).
•
It is not recommended to install additional flue stacks, as this leads to
poor performance and increases the power consumption of the
refrigerator.
•
Mount the flue duct under the upper ventilation grille (fig. j 1).
1.
2.
k
min.
15 mm
1.
2.
3.
l
