RUA5208X, RUA6408X, RUA8408X Connecting the refrigerator
29

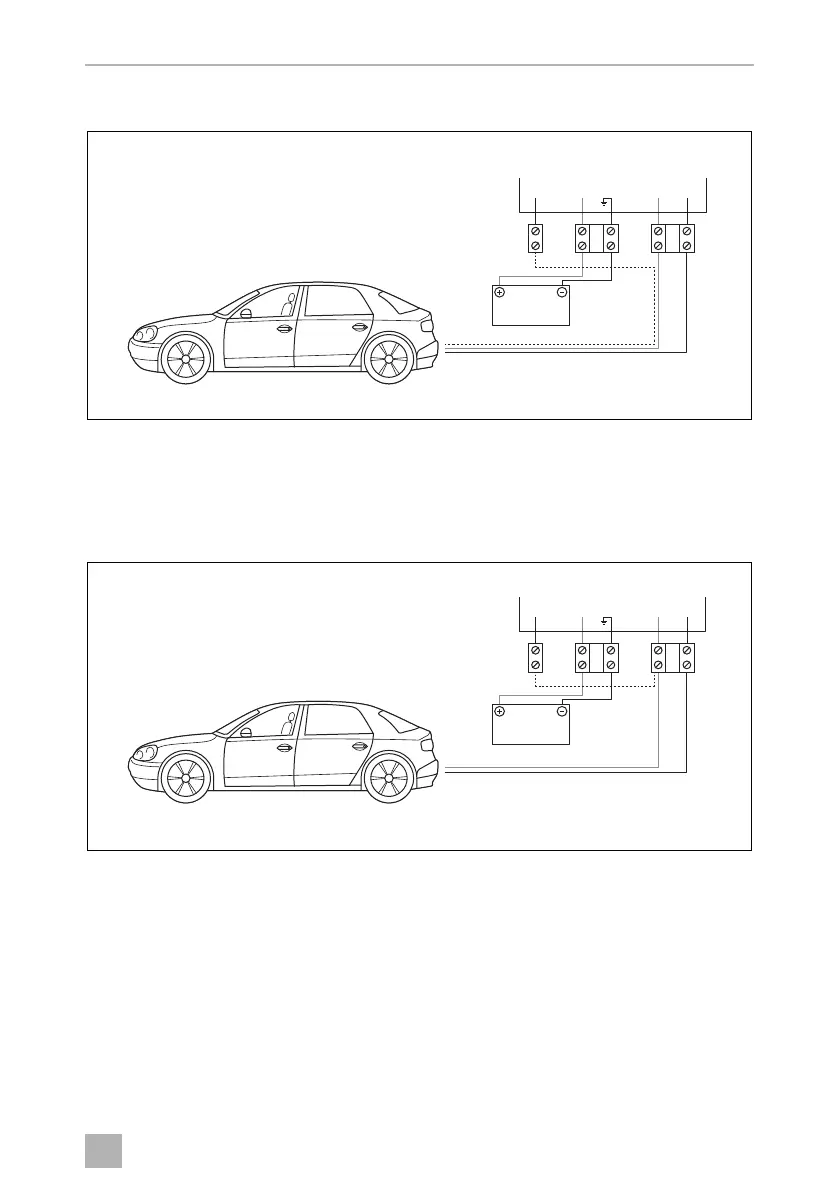

7.3 Alternative connection methods for DC power supply
Connection to suit motor home or caravan with the D+ wire connected to the vehicle
alternator or ignition switch.
No house battery recharging from the vehicle.
The D+ connection is taken to the vehicle alternator.
Anderson plug controlled by vehicle relay to the ignition switch. Power can only be
supplied if the engine is running.
No house battery recharging from the vehicle.
+-+-
House Battery
Anderson Plug
Anderson cables must be the
recommended size.
Refrigerator DC connections
D+ Control Element DC
DC B E F
+-+-
Vehicle Anderson plug must
be controlled by ignition relay.
House Battery
Anderson Plug
Anderson cables must be the
recommended size.
Refrigerator DC connections
D+ Control Element DC
DC B E F
