Connecting the refrigerator RUA5208X, RUA6408X, RUA8408X
30

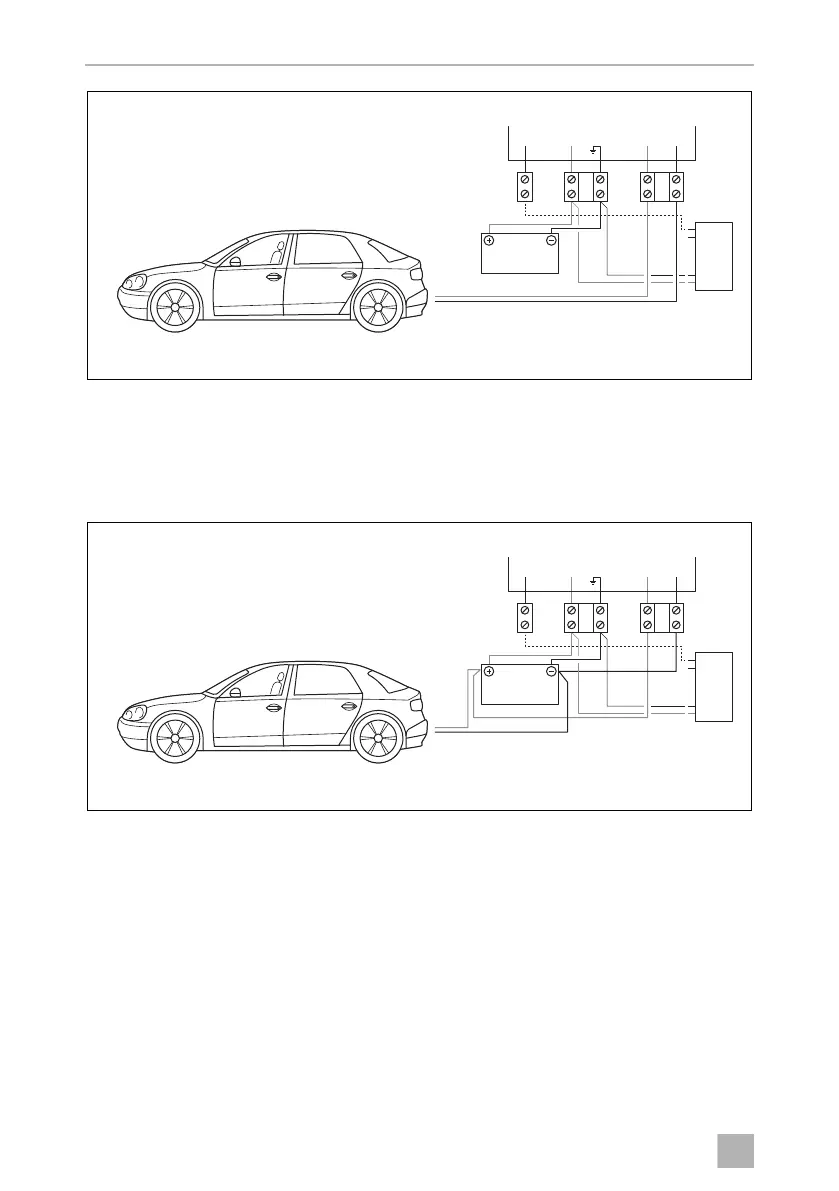

Using a fridge movement switch to add 12 Vg to the D+ connection wire, only
when the vehicle is moving.
No house battery recharging from the vehicle.
The D+ is turned on and off via an optional fridge movement switch.
Using a fridge movement switch to add 12 Vg to the D+ connection wire, only when
the vehicle is moving. The Anderson plug connection must keep the house battery
fully charged.
House battery recharged by vehicle.
The D+ is turned on and off via an optional fridge movement switch.
+-+-
Fridge
Switch
Vehicle Anderson plug must
be controlled by ignition relay.
House Battery
Anderson Plug
Anderson cables must be the
recommended size.
Refrigerator DC connections
D+ Control Element DC
DC B E F
u
+-+-
Fridge
Switch
Vehicle Anderson plug must
be controlled by ignition relay.
House Battery
Anderson Plug
Anderson cables must be the
recommended size.
Refrigerator DC connections
D+ Control Element DC
DC B E F
v
