RUA5208X, RUA6408X, RUA8408X Connecting the refrigerator
31

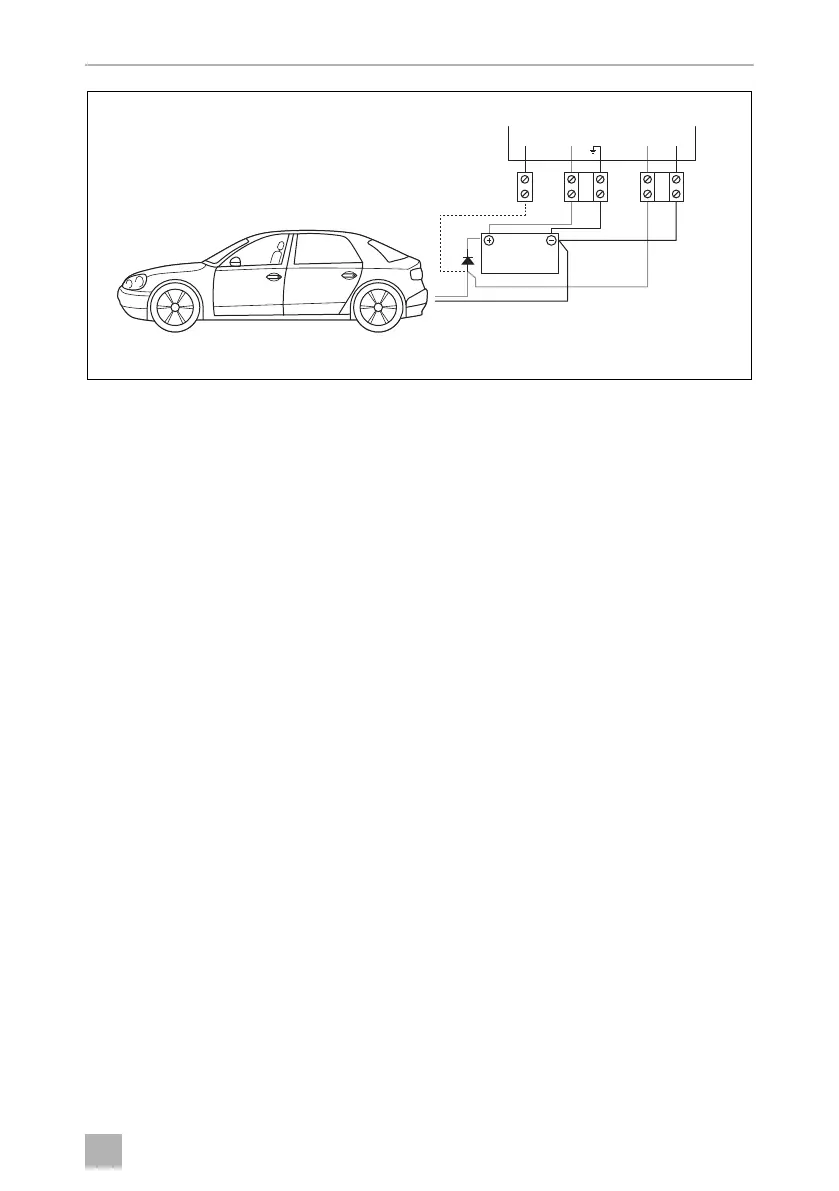

Anderson plug recharging the house battery via a power diode. The D+ wire can
only get a 12 V signal when the battery is being charged.
House battery recharged by vehicle.
The D+ is turned on and off by the vehicle starting and stopping.
+-+-
Vehicle Anderson plug must
be controlled by ignition relay.
House Battery
Anderson Plug
Anderson cables must be the
recommended size.
Refrigerator DC connections
D+ Control Element DC
DC B E F
