RUA5208X, RUA6408X, RUA8408X Using the refrigerator
37

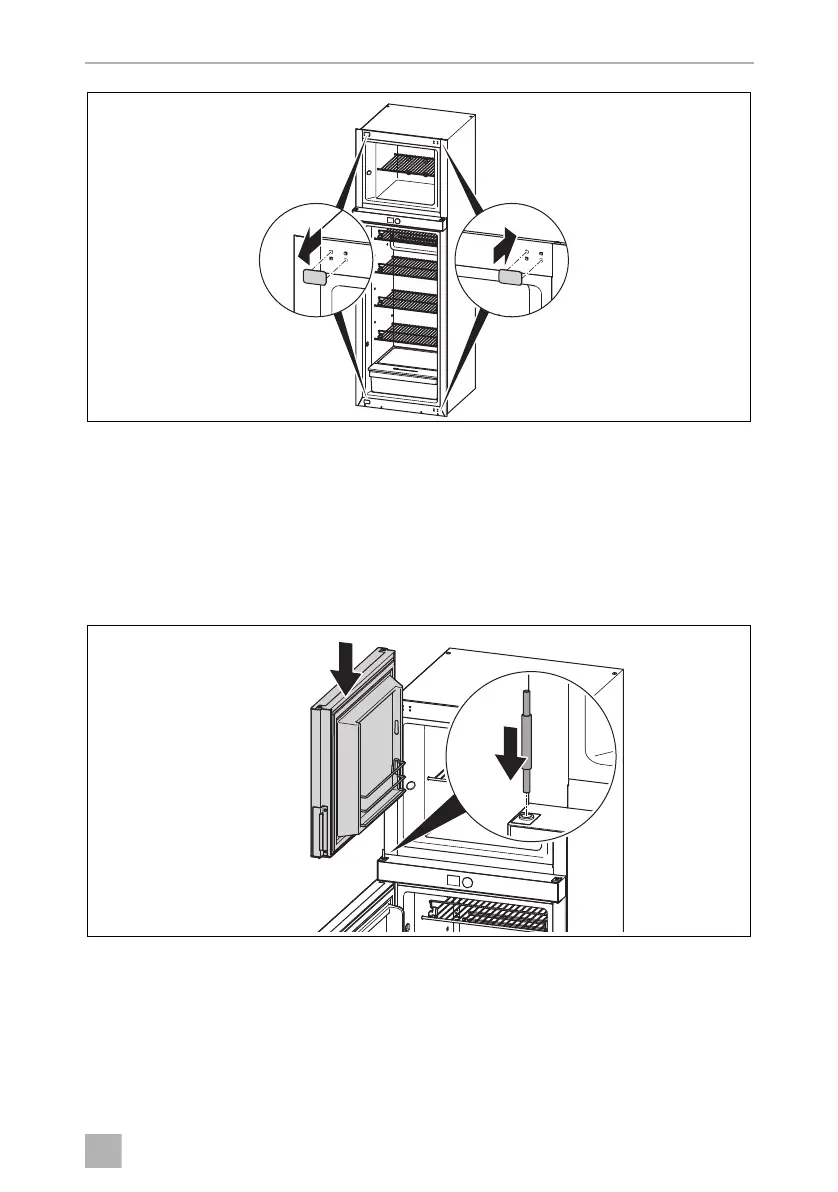

➤ Remove the covers from the upper and lower hinge points (1. in fig. t).
➤ Install the covers on the opposite side (2. in fig. t ).
➤ Turn the former upper hinge 180 degrees and mount it to the new lower hinge
position with the three screws.
➤ Position the refrigerator door on the hinge pin of the newly mounted lower
hinge.
➤ Put the middle pin in place (1. in fig. u).
➤ Fix the top of the refrigerator door by pushing the middle pin into the refrigerator
door top bush.
✔ The refrigerator door is now fixed.
➤ Position the freezer door on the middle pin (2. in fig. u, page 32).
1.
2.
t
1.
2.
u
