Dometic RUC5308X - Page 18

Installation RUC5(x)08X, RUC6(x)08X, RUC8(x)08X
EN
18

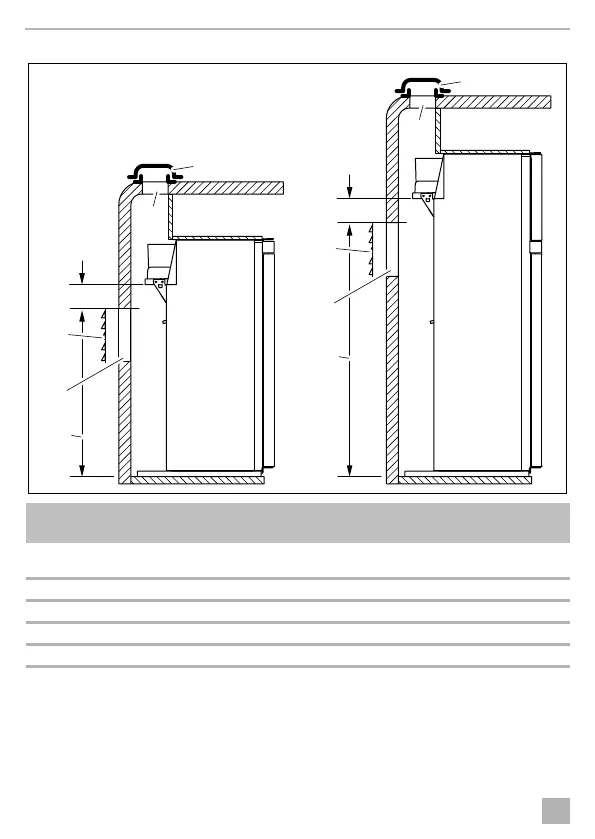

Installation with one lower rear vent and one roof vent
No. in
fig. 0
Description
1 Maximum height for the top edge of the ventilation grille
(equal to 100 mm below the compressor shelf)
2 LS300 ventilation grille
3a Air outlet vent
3b Air inlet vent
4 Roof vent
100 mm
100 mm
1
2
4
1
2
4
3b
3b
3a
3a
0
