RUC5(x)08X, RUC6(x)08X, RUC8(x)08X Installation
19
➤ Make cut outs in the wall for the air inlet and outlet vents. Observe the required dimensions specified in the
installation manual for the LS ventilation grille and the roof vent kit.
– Position of the air inlet vent: It must be possible to install the ventilation grille so that the lower edge of
the ventilation grille is at least 100 mm from the compressor shelf (fig. 0 1).
– Position of the air outlet vent (roof venting): The air outlet vent must be located directly above the
cooling unit at the rear of the refrigerator.
Note: If the air outlet vent cannot be installed directly, but only offset above the back of the refrigerator:
Install an air duct to prevent the heat from accumulating.
7.3 Installing the ventilation grille
I
NOTE
Use the LS300 ventilation grille (accessories).

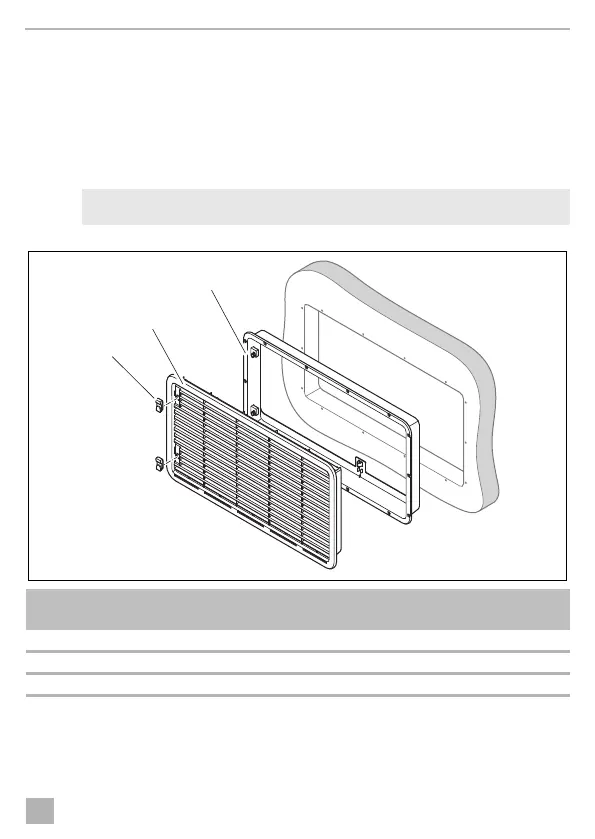

No. in
fig. a
Description
1 Slider
2 Grille
3 Mounting frame
