Installation RUC5(x)08X, RUC6(x)08X, RUC8(x)08X
EN
20

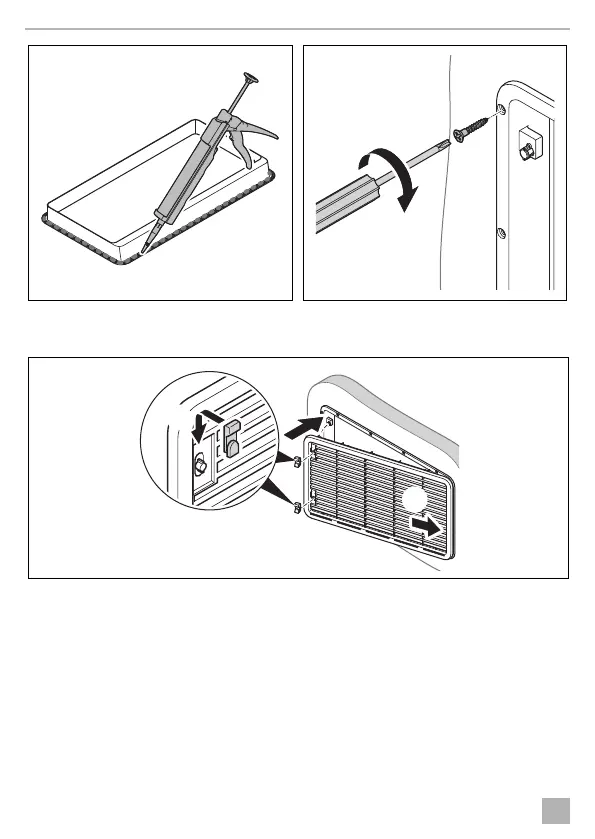

1. Apply sealant to the inner edge of the mounting frame to ensure the installation is water resistant (fig. b).
2. Insert the mounting frame into the prepared openings in the outer wall (see chapter “Installing the refrigerator”
on page 16) and screw the mounting frame to the mounting holes (fig. c).
3. Insert the grille (fig. d 1 and 2).
4. Insert the slider to lock the grille in place (fig. d 3).
b
c
1.
2.
3.
d
