Installation RUC5(x)08X, RUC6(x)08X, RUC8(x)08X
22
2. Insert the mounting frame into the prepared opening in the outer wall (see chapter “Installing the refrigerator”
on page 16) and screw the mounting frame to the mounting holes (fig. g 1).
3. Insert the hood and screw it tight (fig. g 2).
7.5 Installing the drain water hose
A
1. Drill a hole through the floor at the rear of the refrigerator (∅ 18 mm).
2. Route the drain water hose through the drilled hole and align the hose so that it can direct the water out of the
vehicle.
3. Seal the drilling hole around the drain water hose.
7.6 Sealing the refrigerator

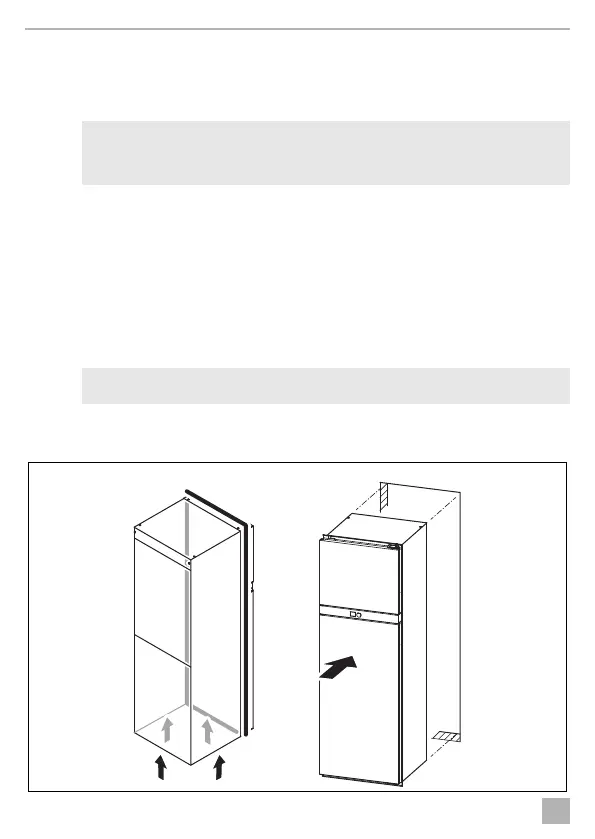

Refrigerators in caravans or motor homes must be installed in an enclosed space so that dust and heat cannot enter
the living space directly.
For this purpose, a suitable seal must be installed between the rear wall of the refrigerator and the interior of the
vehicle in order to seal the interior of the vehicle from the cooling unit and ventilation area of the refrigerator.
!
Sealing the refrigerator using the sealing strip
The manufacturer has applied a sealing strip to the rear surface of the front frame.
NOTICE! Damage hazard
• Position the opening for the drain hose so that the drain hose does not touch the boiler housing
to avoid damage to the drain hose.
• Avoid kinking of the drain water hose.
WARNING! Fire hazard
Do not use flammable materials for the draught-proof installation.
