Using the refrigerator RUC5208X, RUC6408X, RUC8408X
44
➤ Remove the locking catch screw (fig. C 1).
➤ Take off the locking catch and top cover (fig. C 1).
➤ Remove the cover and bush on the hinge side with a small screwdriver
(fig. C 2).
➤ Remove the screw under the bush on the hinge side.
➤ Exchange the locking catch and the bush and install each of them on the oppo-
site side.

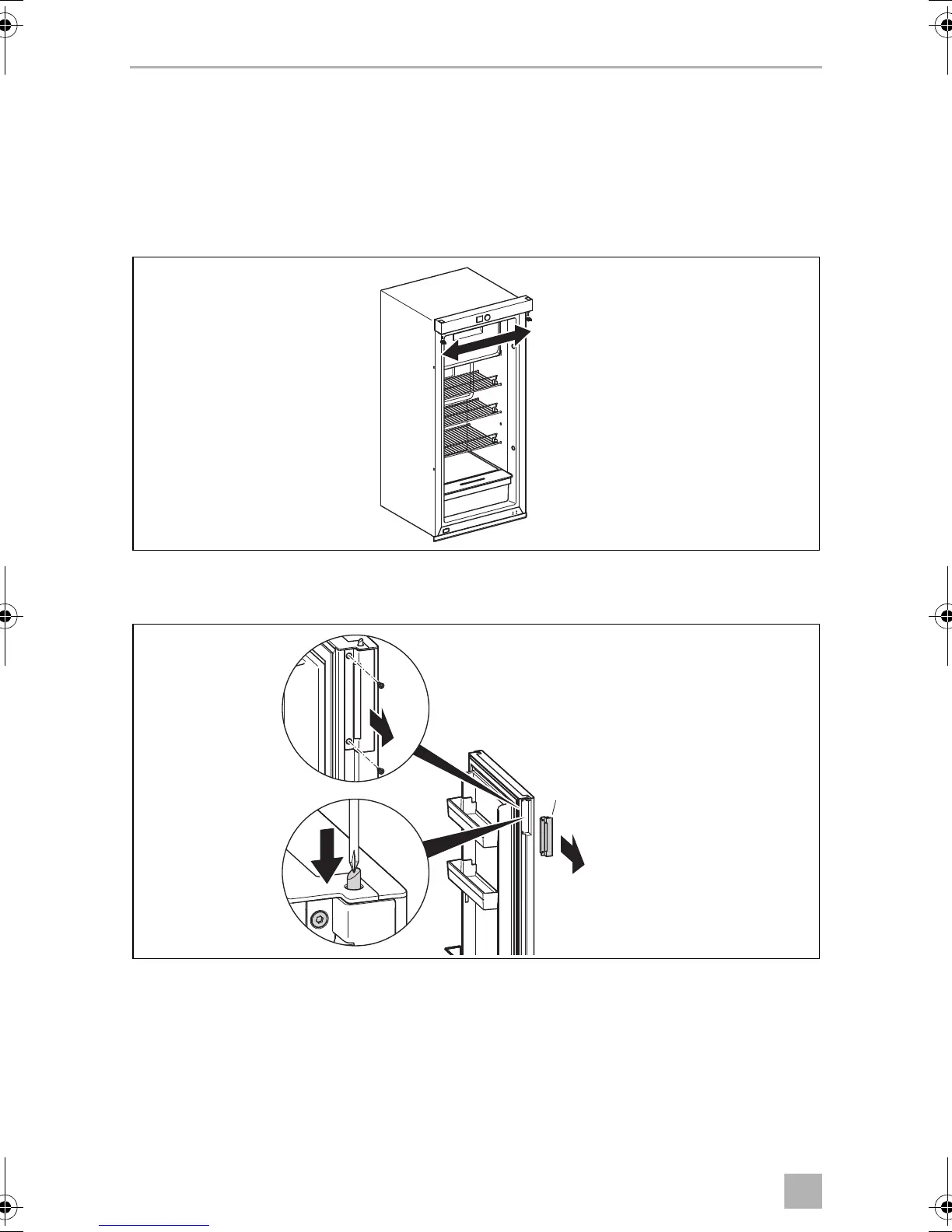

➤ Remove the two screws (1. in fig. E) from the latch assembly.
➤ Push the spring bolt (2. in fig. E) inwards with a small screwdriver, until the latch
assembly (fig. E 1) is released.
➤ Remove the latch assembly (3. in fig. E) and discard.
➤ Remove the latch blank from the opposite side of the door.
