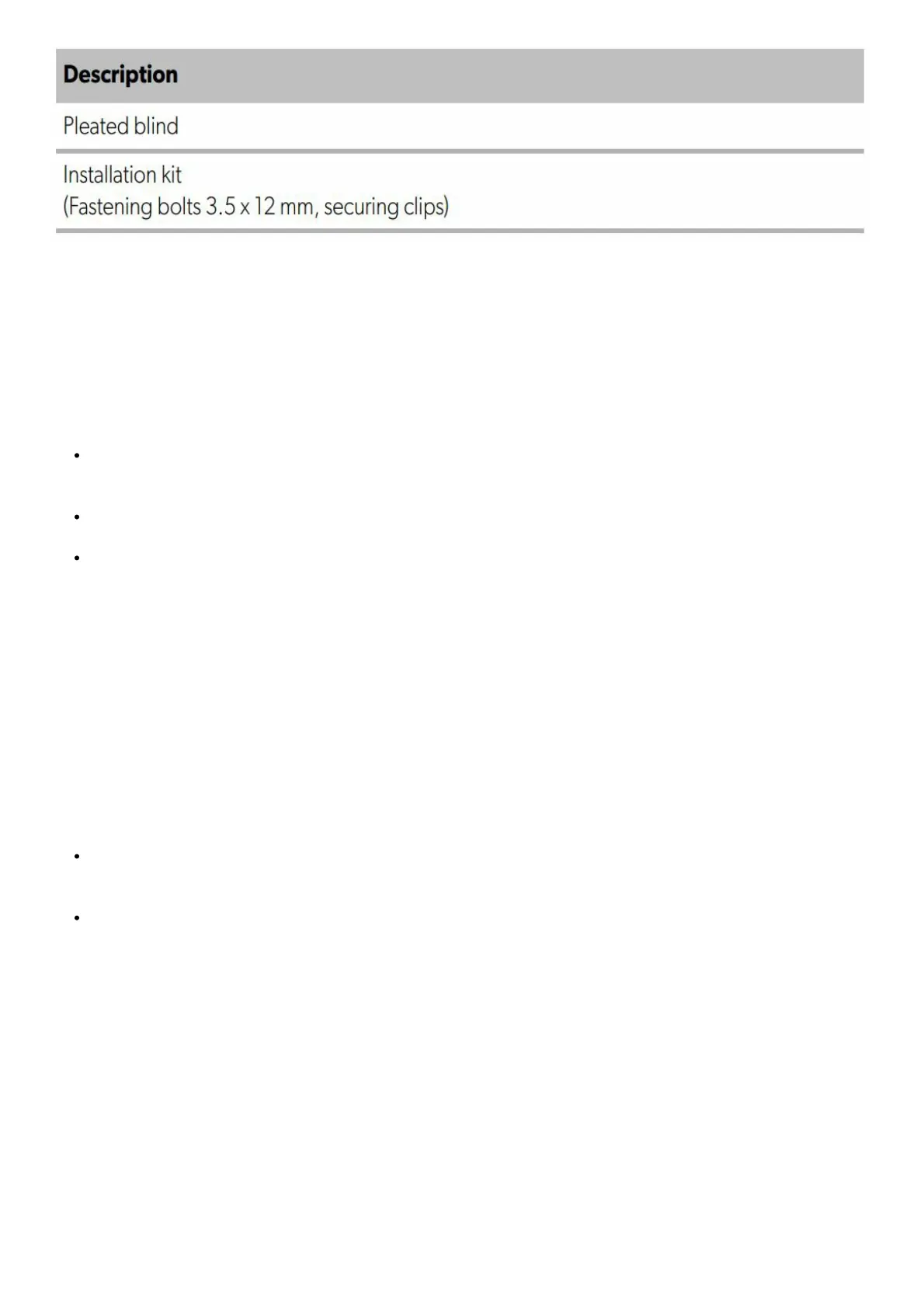

Intended use
The S7P wall window is suitable for installing in delivery vans with curved exterior surfaces (radius of 5000 mm). The
wall windows are designed as vent windows.
The S7P window is designed for a wall thickness of 22 – 43 mm.
Instructions before installation
Before installation, check the wall thickness of your vehicle. Consult the vehicle manufacturer if you have any
questions. You need securing clips (not supplied) to suit the thickness of the wall (see chapter “Preparing the
installation” on page 6).
With sheet metal coverings, the wall thickness must be increased to at least 22 mm by adding a suitable
mounting frame (e.g. wooden frame).
When choosing the installation location, observe the following:
– Adjoining components (attachment and reinforcing parts), cables and cabinets in the vehicle interior must not get
damaged when sawing the hole.
– Sufficient space needs to be available for installing the inner and outer frames.
– Only install the wall window on curved wall surfaces with a radius of 5000 mm.
Pressing out the hole
See fig. 2
Preparing the installation
Supplementary to fig. 3
Measure wall thickness W (A)
If the wall thickness is less than 22 mm, then you must add to the wall section
with a suitable mounting frame (B)
Determine the type of clip by referring to the following table:
