Replacement Parts Continued
Sport & Sport Plus Tilt Helms

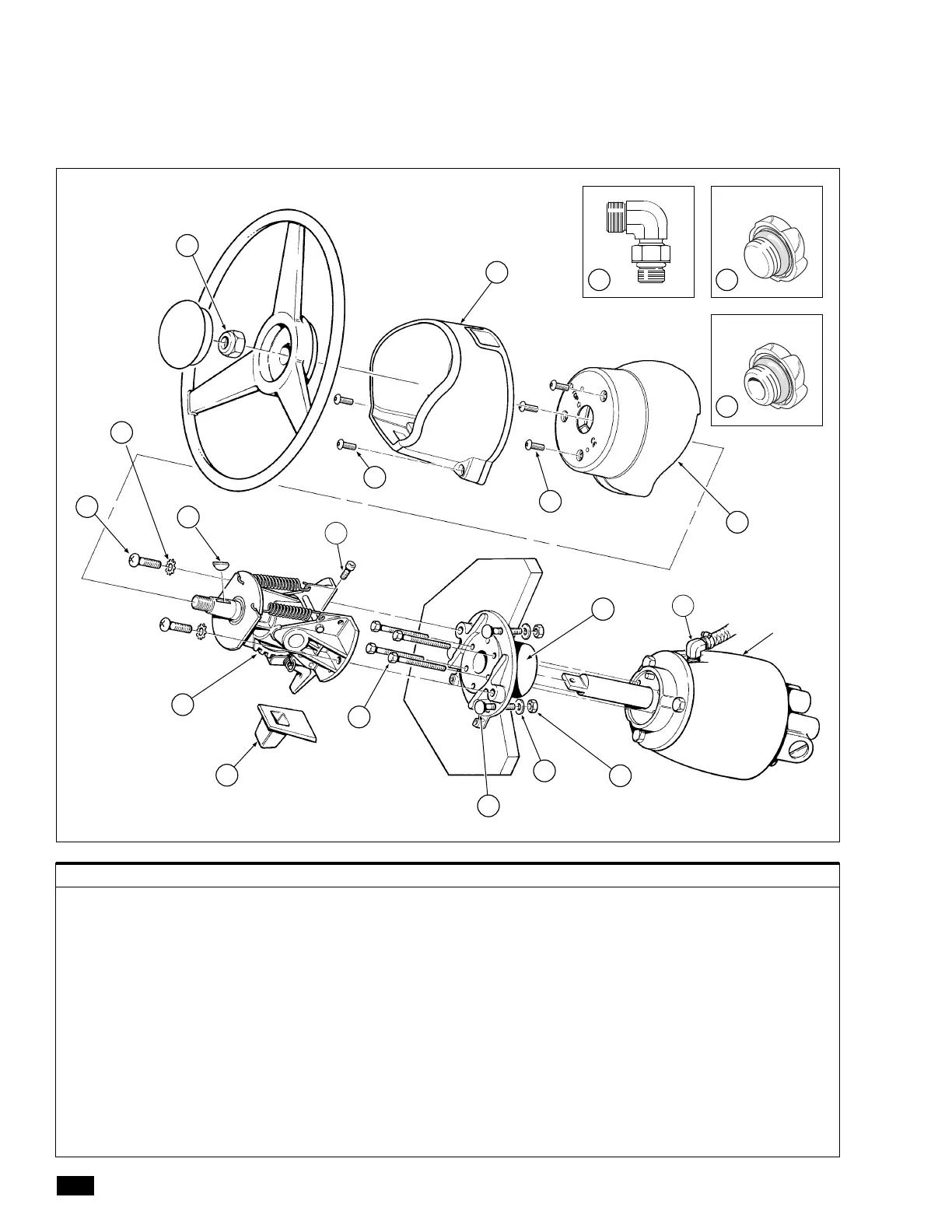

Figure 9.
13
13
6
10
1
HELM PUMP
14
11
12
9
3
5
4
7
8
15
16
2
SPORT PLUS TILT HELM
FIGURE # ITEM # KIT # DESCRIPTION
8, 9 - - Helm pump assemblies — not sold separately
8 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, HA6123 Sport tilt helm replacement tilt mechanism with bezel, boot,
11, 12, 13, 14, 15 bellows, and all mounting hardware
8 10, 11, 12, 13 18-HA6150 Sport tilt helm replacement bezel, boot, and bellows only
9 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, HA6423 Sport Plus tilt helm replacement tilt mechanism with bezels,
11,12, 13, 14, 15 boot, and all mounting hardware
9 10, 11, 12, 13 18-HA6450 Sport Plus tilt helm replacement bezels and boot only.
8, 9 19 HA5431 Replacement ll port plug (vented for systems using unbalanced
cylinders, AP pumps or multi-helm installations
8, 9 18 HA5432 Replacement ll port plug (non-vented)
8, 9 16 HA6450 Replacement remote ller kit
8, 9 17 HF6004 Replacement 9ORB ttings
8, 9 14, 15 HP6032 Replacement shaft seal kit with wheel shaft nut and key
NON-VENTED PLUG
VENTED PLUG
17 18
19
