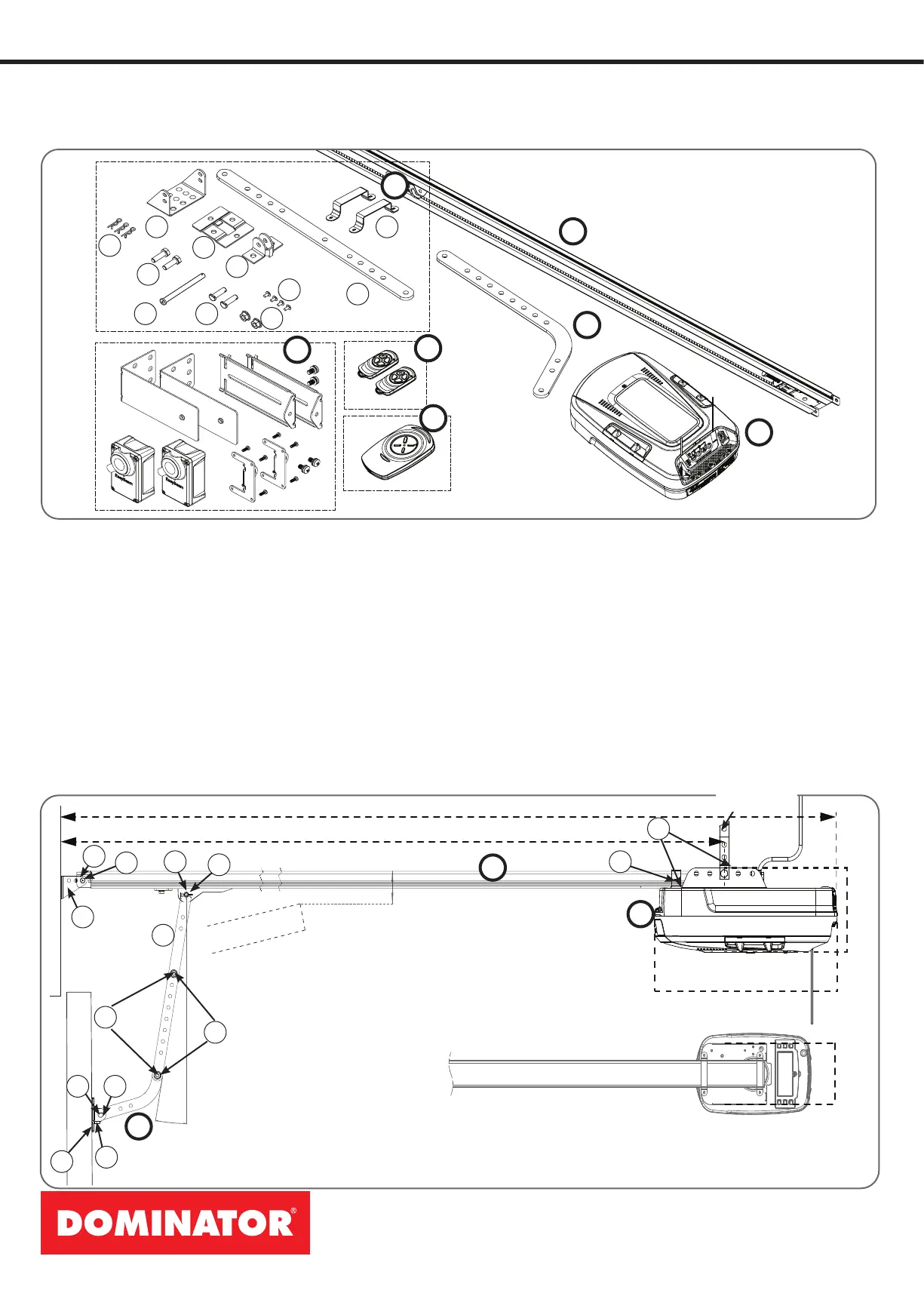

4. Kit Contents
1. 1 x DSO drive unit
2. 1 x Bent arm door attachment
3. 1 x Wall Transmitter
4. 2 x Transmitters
5. 1 x Safety Beam Kit
(Smart & SmartPro only)
PLUS
6. 1 x Track Hardware Kit
7. 1 x Pre-Assembled track
10.00°
min
MINIMUM HEAD
ROOM FOR
RAIL 57mm
DOORS HIGHEST
POINT
3156mm*
3374mm
150mm
353mm
Rail no Extension Kit 3156mm
Rail + 1 Extension Kit 3946mm
Rail + 2 Extension Kits 4736mm
* Rail refers to 3160 rail
170mm
1
7
2
5. Position
Perforated
Angle
The Opener:
a. MUST BE installed in a dry position, protected from weather.
b. REQUIRES properly earthed 3 pin single phase power on the ceiling within an arms length of the opener.
c. Requires a MINIMUM HEADROOM of 57mm between the highest point of the door’s travel and the ceiling.
d. Use the diagram below as a reference when completing the installation.
