49

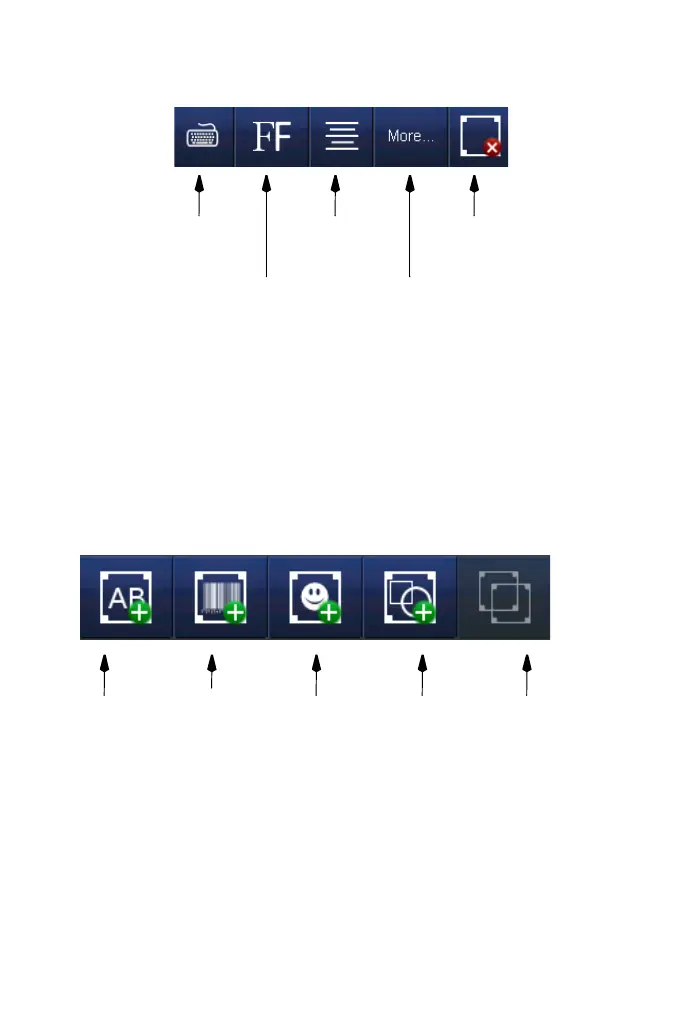

Edit
Edit Text
- Opens the keyboard to edit the text content.
Select Font
- Opens the list of availabl
e fonts to select a font.
Alignment
-
Sets the alignment of the object.
Edit Object Properties
- Allows editing the properties of the object.
Delete Object
- Delete
s the selected object.
Add
Edit T
ext
Select
Fo
n
t
Alignment
Edit Object
Pr
o
perties
Delete
Object
Edit menu for a text object.
Te
x
t
Barcode
(MRC)
Arc
Rectangle
Clone Item
49
51
