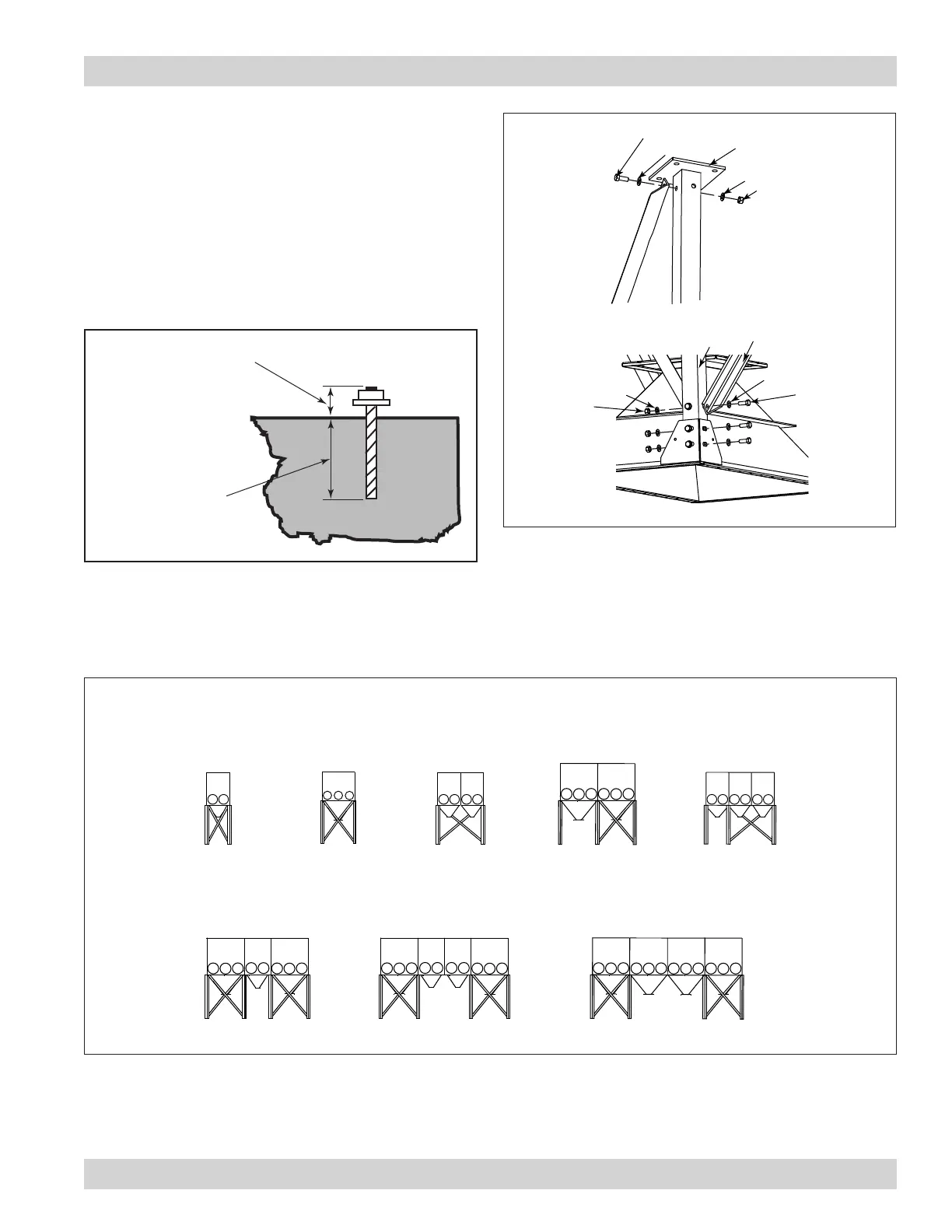

Downflo Evolution, DFE 2-8 to 5-80
8
Provisional Anchor Bolt Recommendations
1. Consider Hilti HIT-HY 200 Anchor System or
equivalent. Quantity of anchor bolts should match the
number of holes provided in the base plates.
2. Anchor diameter is typically 1/8-in less than
baseplate hole diameter.
3. Corrosive environment or outdoor installation may
require stainless steel anchors.
Leg and Cross Brace Assembly
flat washer
hex nut
hex nut
cross brace
leg
flat washer
hex bolt
flat washer
hex bolt
flat washer
leg
Typical Foundation Anchor
Anchor should project a
minimum of 1 3/4-in and
account for nut, washer,
base plate and shims/
grout.
Embedment depth
(suitable for the
physical properties of
the foundation).
Leg Positioning
single module dual module 3-module
DFE 3-72
DFE 2-8, 3-12,
4-16 and 5-20
DFE 3-24, 4-32
and 5-40
DFE 4-48
and 5-60
DFE 2-12, 3-18,
4-24 and 5-30
DFE 3-60 and 4-80DFE 3-48,
4-64 and 5-80
dual module
DFE 3-36
