Donaldson Torit Downflo Evolution DFE 2-8 - Page 31

Downflo Evolution, DFE 2-8 to 5-80
28

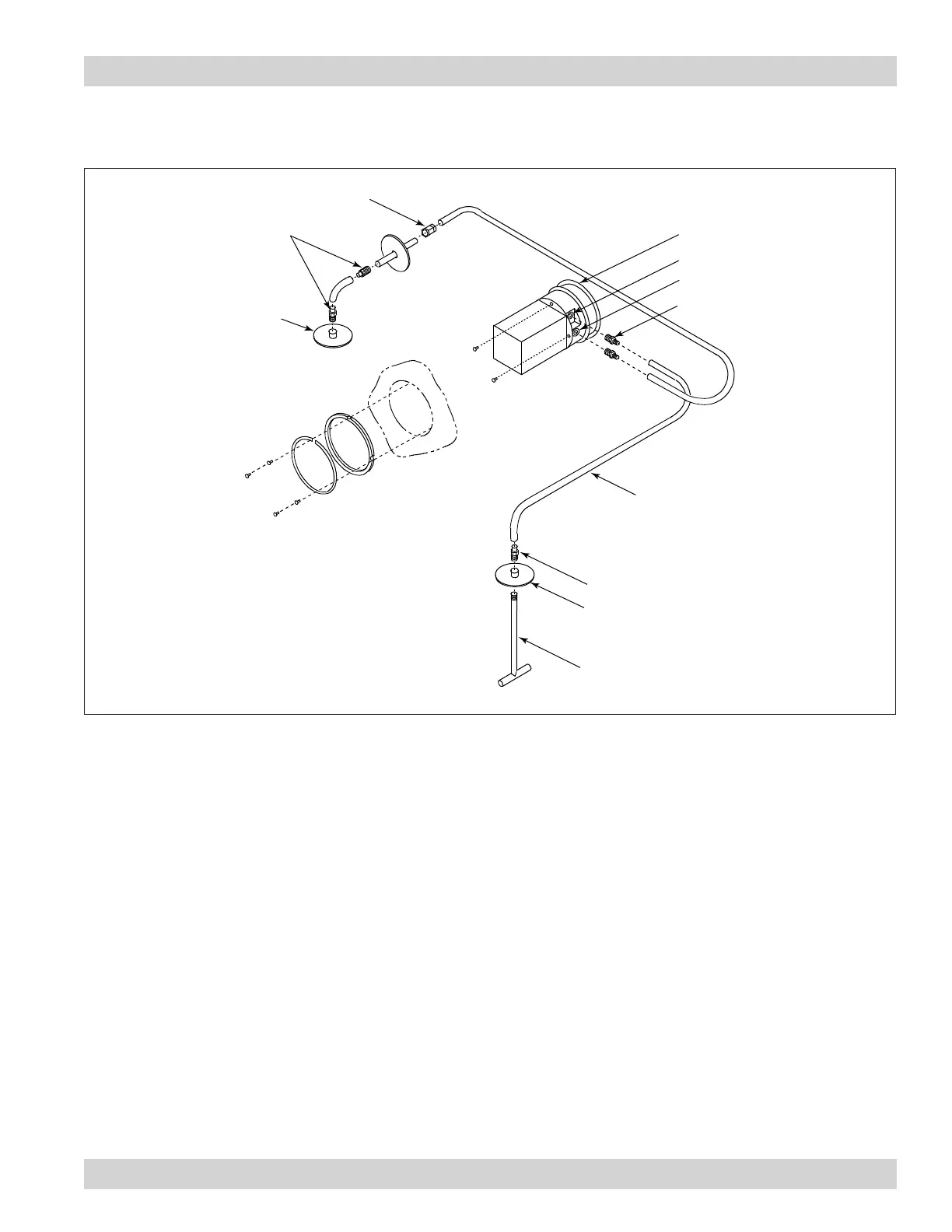

Photohelic Gauge, Remote Panel, or Door Installation
NPT male adapter
1/8-in NPT male adapter
Photohelic gauge
clean-air plenum
pressure tap location
high-pressure port
low-pressure port
plastic tubing
1/8-in NPT male adapter
dirty-air plenum pressure
tap location
static pressure tee
two 1/8-in NPT adapters
