Clean Change Filter Installation
1. Place a clean filter cartridge in a new BIBO bag with
the filter gasket side facing the bag opening toward
the collar on the collector.
2. Place clean filter and BIBO bag on BIBO service
shelf.
3. Slide the new BIBO bag over the collar and past the
bag stub and bag stub O-ring gasket. Position the
bag extension on the opposite side of the access
cover hinge
4. Install the new front (integrated) O-ring gasket in the
back groove.
5. Install the back (unattached) O-ring gasket adjacent
to the back O-ring gasket.
6. Reinstall the band clamp on the front O-ring gasket
(closest to collector).
7. Invert the BIBO bag extension with both hands and
pull off the bag stub section and O-ring gaskets into
the new BIBO bag. O-ring gaskets will automatically
pull off with it.
8. Move the back O-ring gasket into the front groove.
9. Remove the band clamp and reinstall on the back
O-ring gasket.

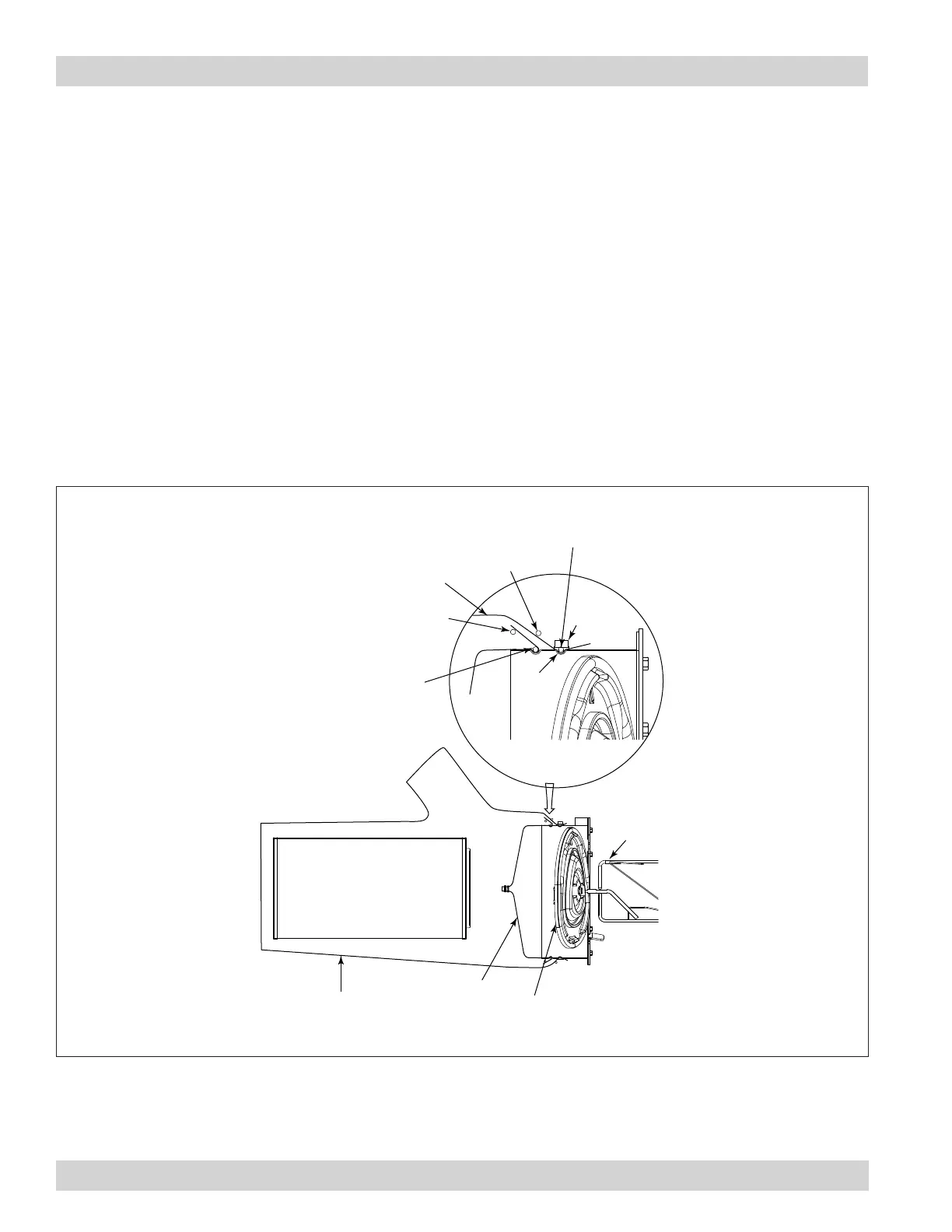

Filter Installation
new BIBO
bag
front o-ring
(bag stub)
back o-ring in front
collar groove
(bag stub)
back o-ring gasket
(new BIBO bag)
new BIBO bag
hinged filter
access cover
bag stub
*BIBO collar breather
not shown
yoke
back
collar
groove
band clamp
front o-ring gasket
(new BIBO bag)
in back collar groove
clean filter
