Vibra-Shake, VS-550 to VS-3000
6

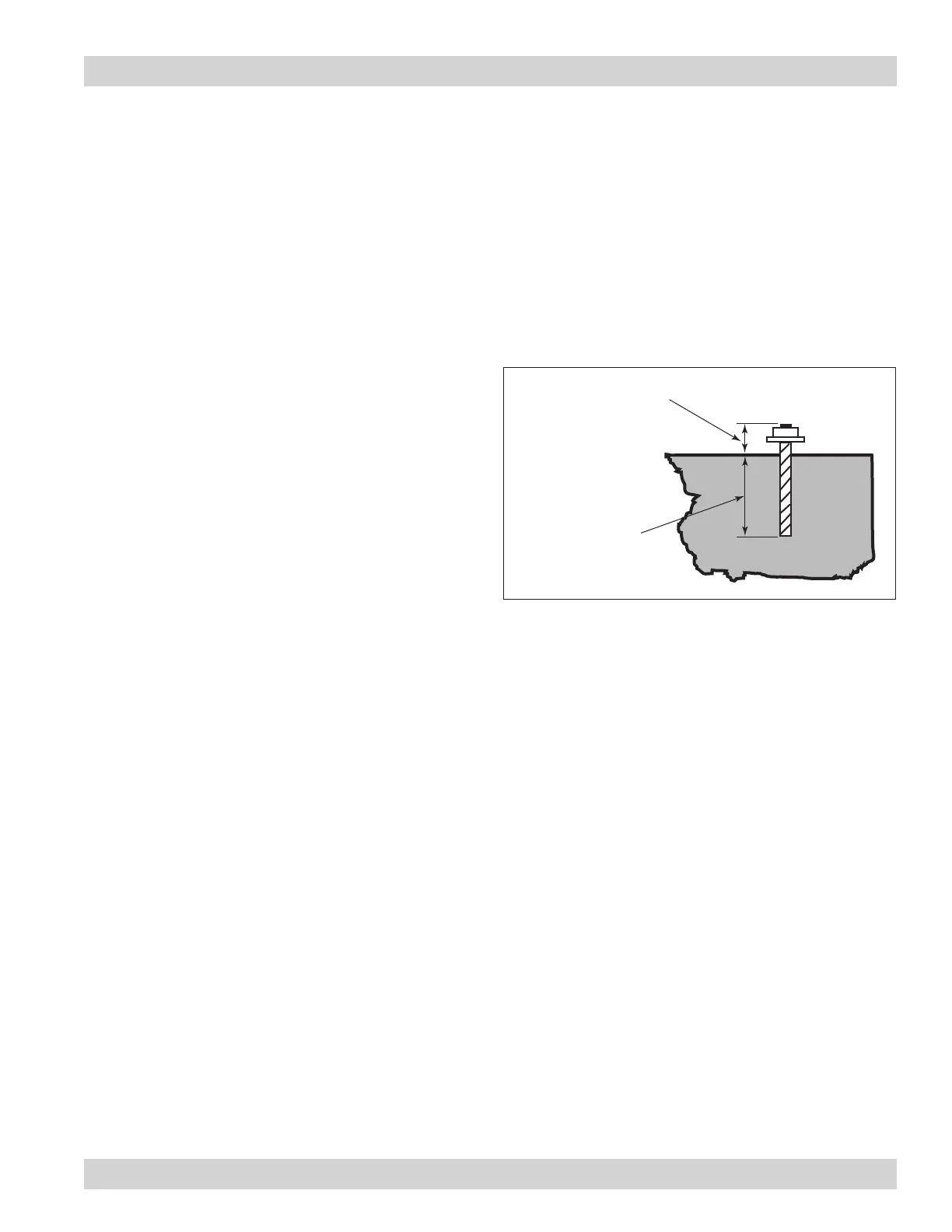

Anchor should project
a minimum of 1 3/4-in
and account for nut,
washer, base plate
and shims/grout.
Embedment depth
(suitable for the
physical properties
of the foundation).
Typical Foundation Anchor
Provisional Anchor Bolt Recommendations
1. Consider Hilti HIT-HY 200 Anchor System or
equivalent. Quantity of anchor bolts should match the
number of holes provided in the base plates.
2. Anchor diameter is typically 1/8-in less than
baseplate hole diameter.
3. Corrosive environment or outdoor installation may
require stainless steel anchors.
6. Position and bolt the cross brace in place using the
hardware provided. Do not tighten hardware.
7. Bolt inside and outside cross braces together where
they form a X. Do not tighten hardware.
8. Lift the hopper and leg assembly and lower slowly to
the anchor bolts.
9. Level the hopper at the top flange using steel shims if
necessary. Secure leg pads to anchor bolts with the
appropriate customer-supplied washers and nuts.
10. Tighten all hardware on the legs, cross braces, and
anchor bolts. Recheck level and adjust as necessary.
11. Remove crane.
