4
DFOE4
DFOE3

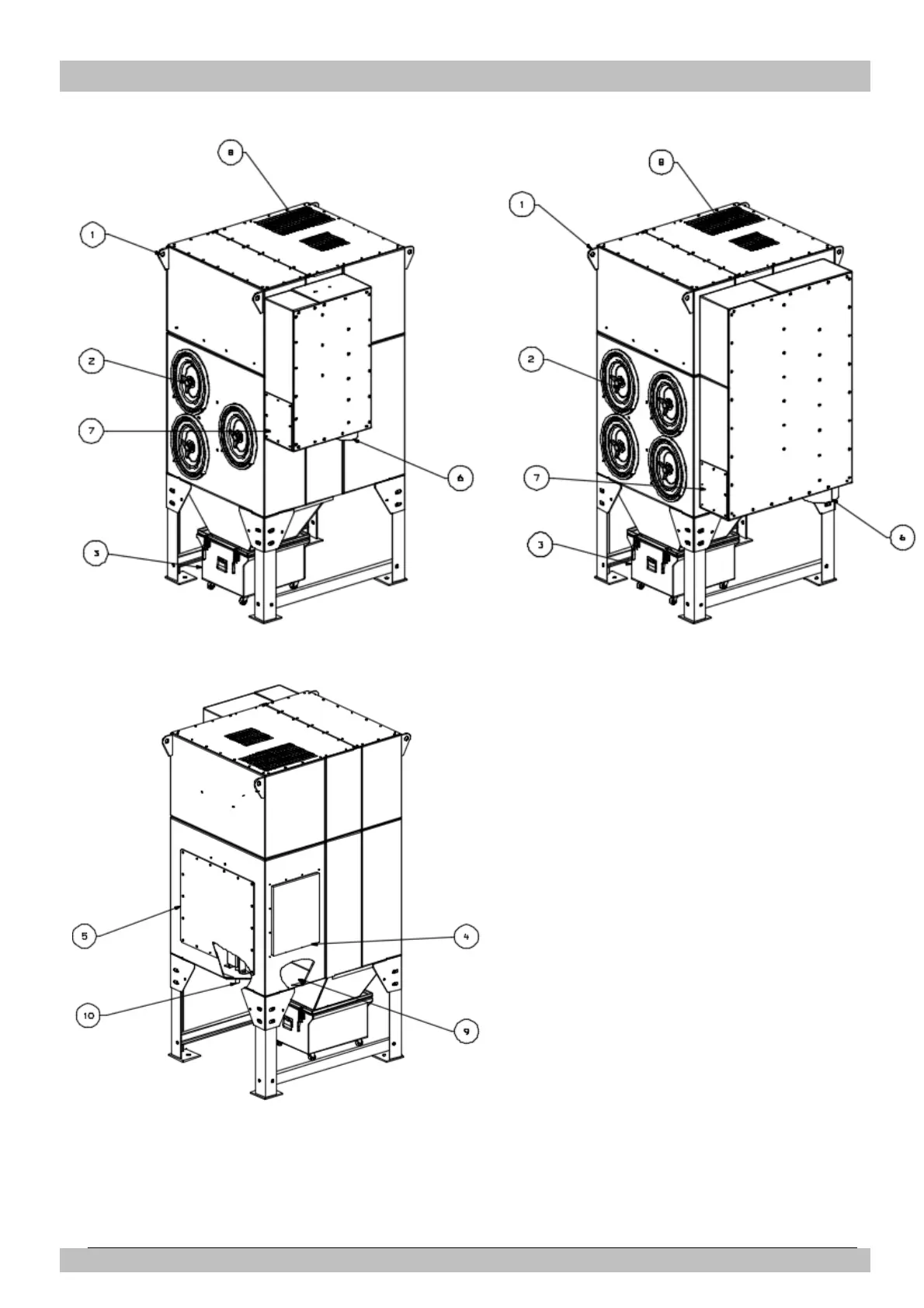

Figure 1
Schematic
1. Lift bar
2. Filter access cover
3. Dust bin
4. Control panel
5. Access door
6. Inlet
7. Access panel for cleaning
8. Fan outlet
9. Power supply cable inlet
10. Compressed air inlet
