DFOE 3,4,6
7

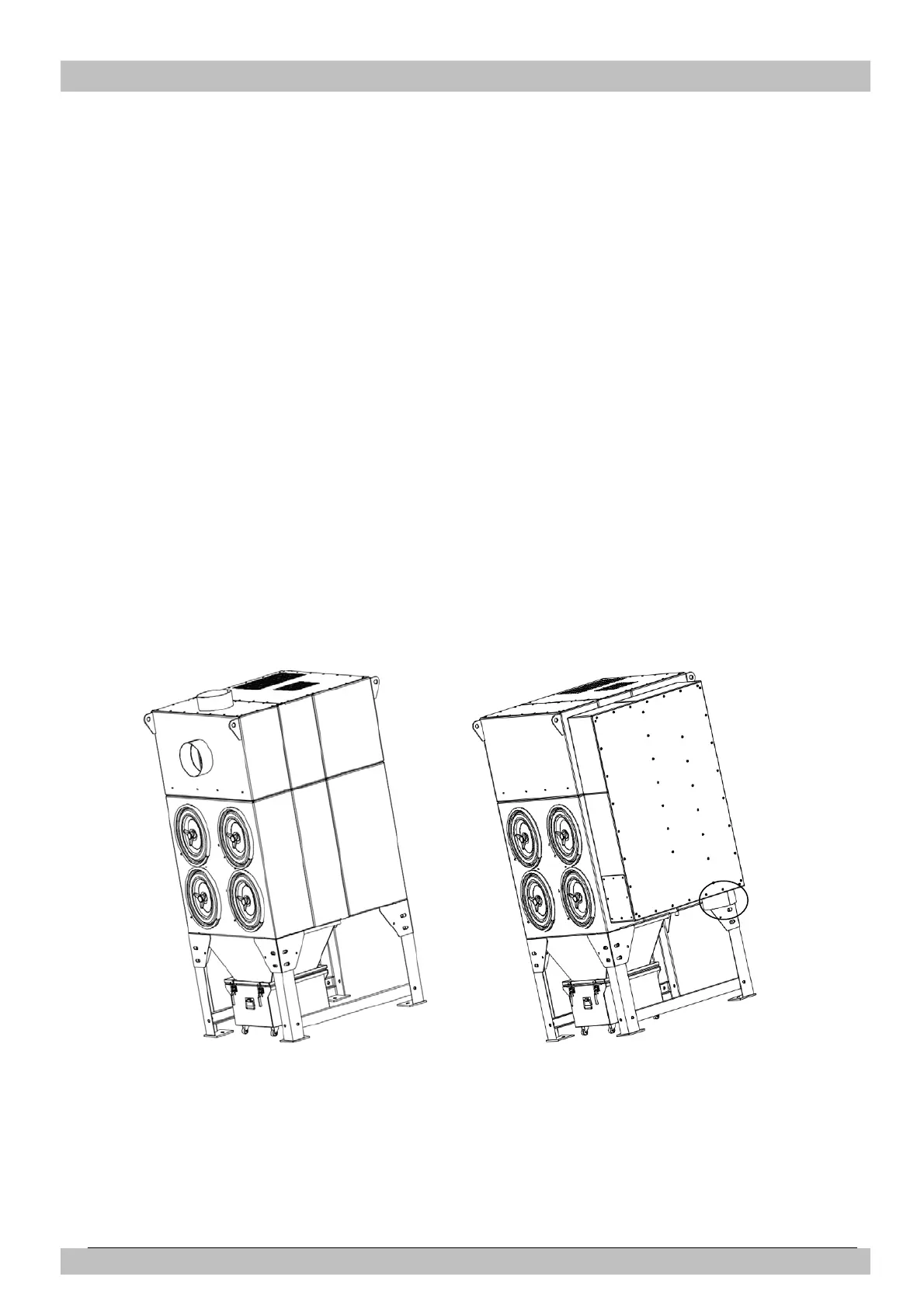

Figure 3
Inlet Schematic
2.3 Inlet Duct Connection
The inlet collar is integrated with the unit, it is
shown on figure 3.
3.0 Start-up and Operation
Check that the outlet of the fan is free of
debris before starting.
Make sure the dust disposal system is
properly installed under the hopper.
With new filter elements the airflow should be
adjusted to the nominal value by closing the
damper valve.
Check if the access doors are closed.
Switch main power on and press
switch ’start’.
Adjust the damper to the desired airflow.
Turn on the compressed air supply. Adjust to
6 bar of pressure with the compressed air
regular.
The cleaning cycle only starts when
necessary. For customized setting see the
controls manual.
