PIANO ASSEMBLY

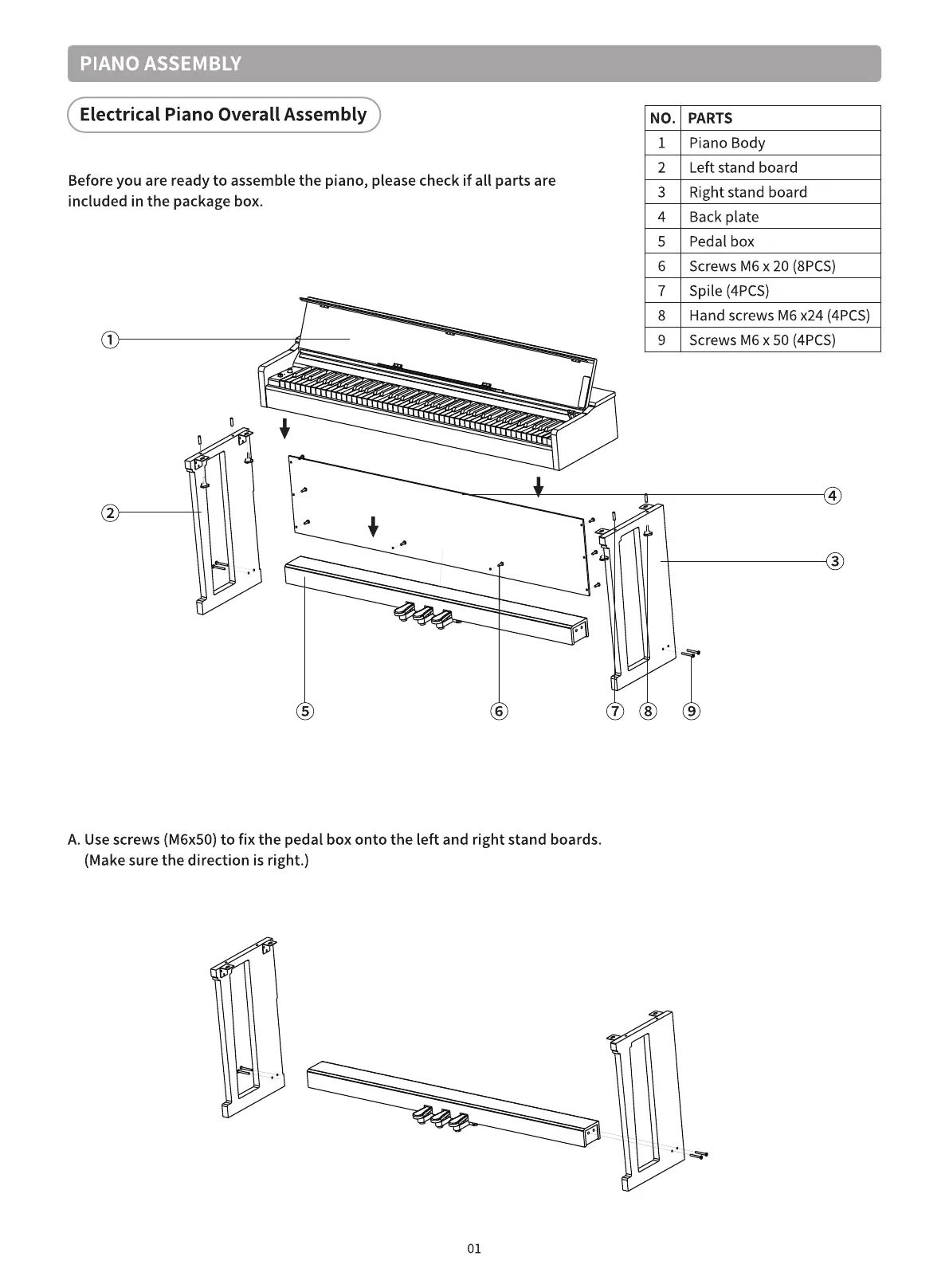

Electrical Piano Overall Assembly
Before you are ready to assemble the piano, please check if all parts are
included in the package box.
2
5 6 7
NO.
1
2
3
4
5
6
7
8
9
8
PARTS
Piano Body
Left stand board
Right stand board
Back plate
Pedal box
Screws M6 x 20 (8PCS)
spile (4PCS)
Hand screws M6 x24 (4PCS)
Screws M6 x 50 (4PCS)
4
3
9
A. Use screws (M6x50) to fix the pedal box onto the left and right stand boards.
(Make sure the direction is right.)
01
To Next Page
