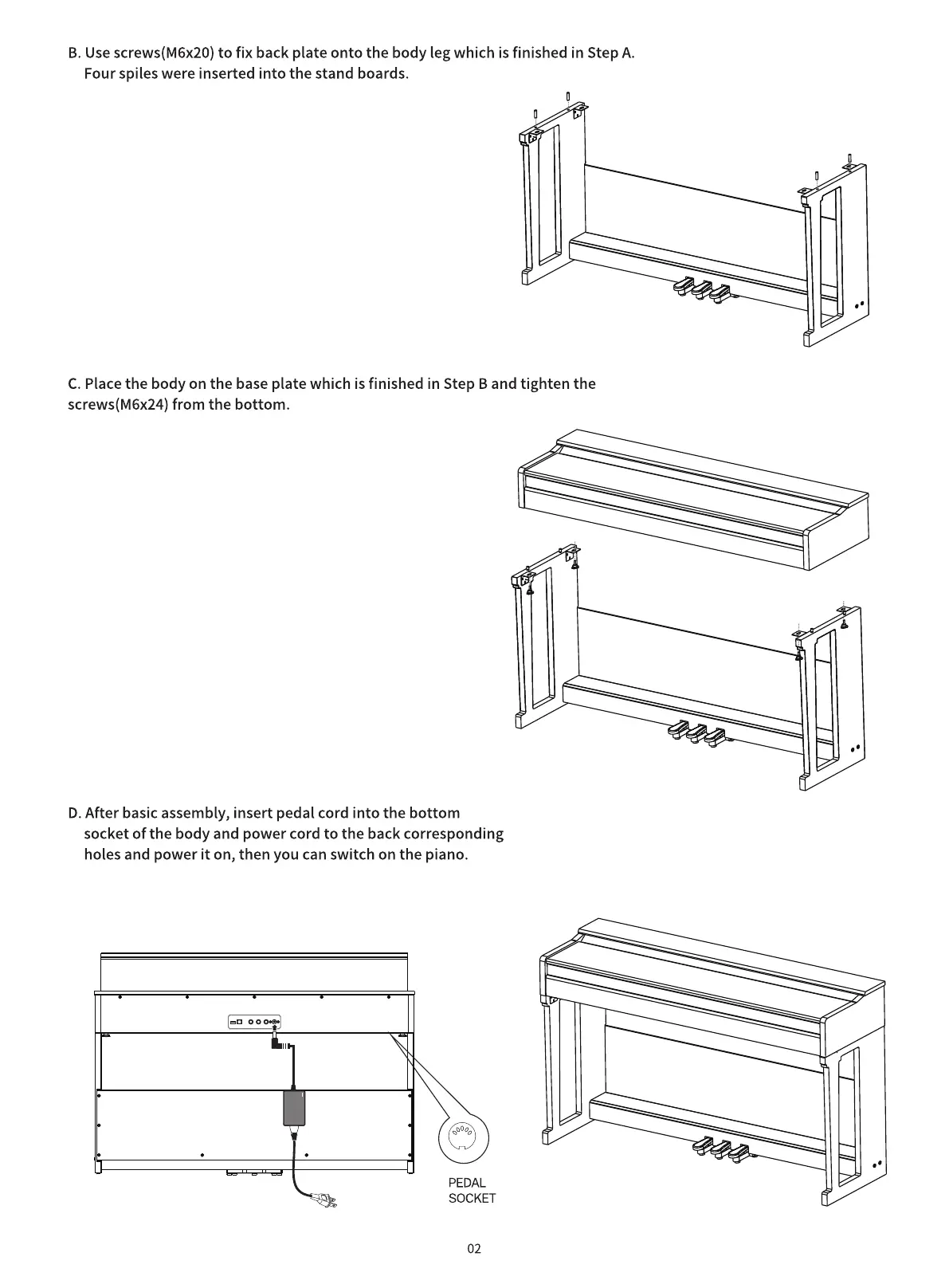

B. Use screws(M6x20) to fix back plate onto the body leg which is finished in Step A.
Four spiles were inserted into the stand boards.
C. Place the body on the base plate which is finished in Step B and tighten the
screws(M6x24) from the bottom.
D. After basic assembly, insert pedal cord into the bottom
socket of the body and power cord to the back corresponding
holes and power it on, then you can switch on the piano.
—e 00
000
PEDAL
SOCKET
02
