4 Locking Devices

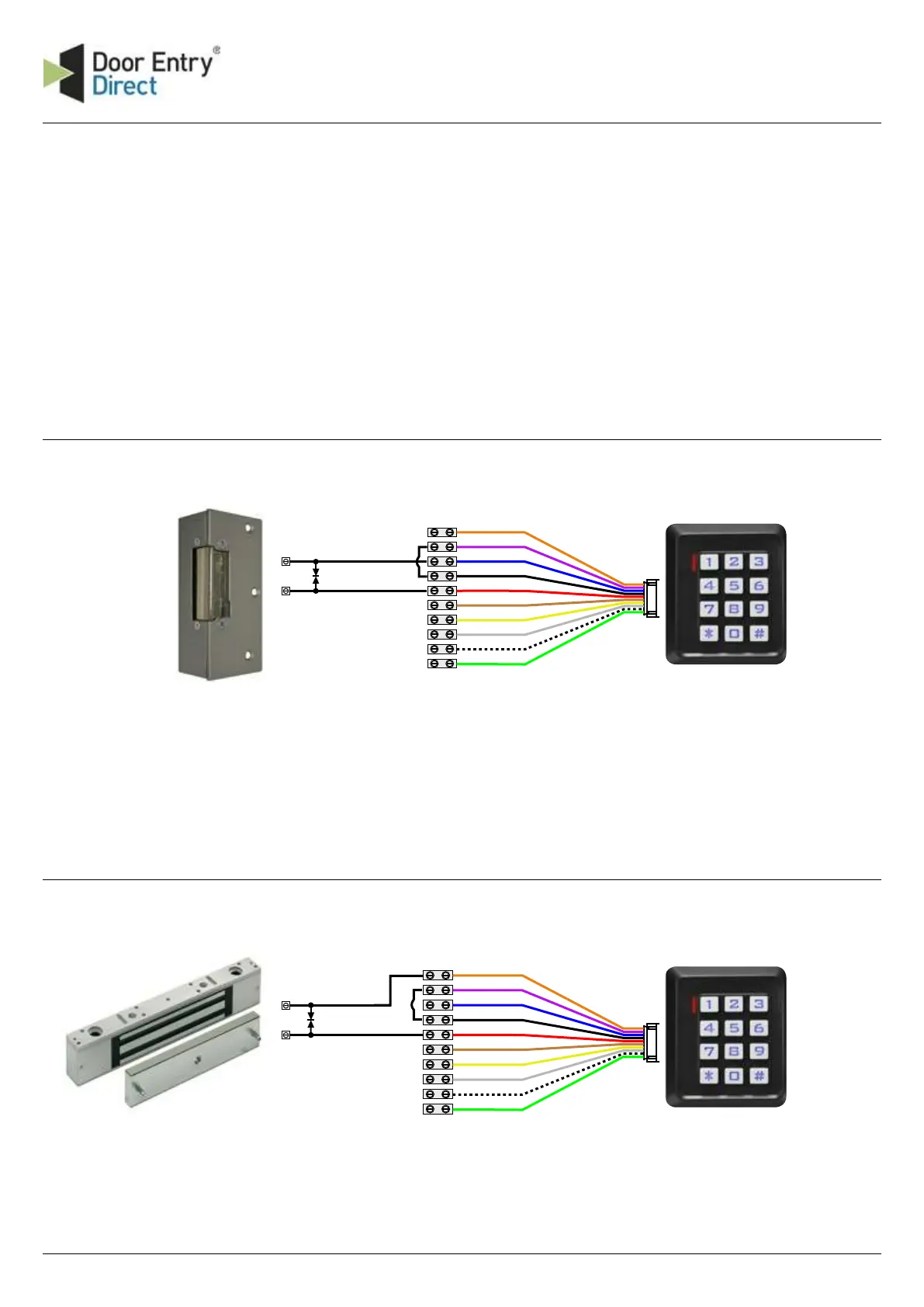

The lock release should match the supply input and have
lock suppressor connected directly across its terminals
(as shown & supplied).
N/C Orange
COM Purple
N/O Blue
Black GND
Red +12V DC
Brown D_IN
Yellow OPEN
Grey ALARM
White D1
Green D0
N/C Orange
COM Purple
N/O Blue
Black GND
Red +12V DC
Brown D_IN
Yellow OPEN
Grey ALARM
White D1
Green D0
Locking - Fail locked
Locking - Fail unlocked
