ELECTRICAL CONNECTIONS 0,75 KW

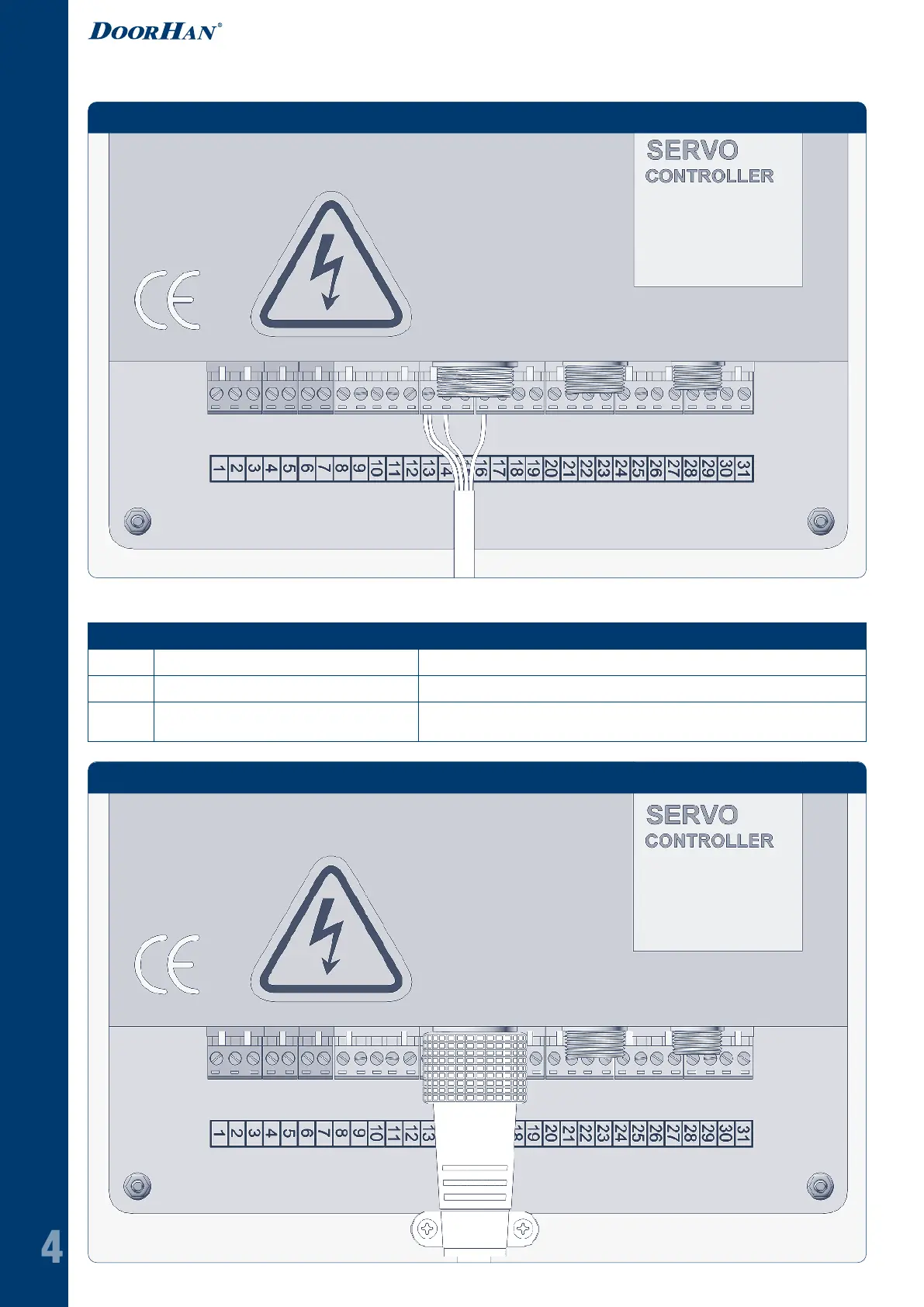

Fig. 3. Connection of photocells, part no. HSDC 18201 (0,75 kW)
Fig. 4. Connection of motor power supply (0,75 kW)
Port Function Wire colour
13 DC 24 В + Brown and pink
14 Com/Gnd Blue
16 Safety device 2
Black (change contact type to NC: set – 6668 > advanced settings > contact
type > safety2 > NC/NO)
Table 3. Connection of photocells (0,75 kW)
