* DoorHan does not provide a power wire. Wirecolour may differ from those listed in the manual. It is recommended to use a wire with a cross
section of 1,5
mm
2
.

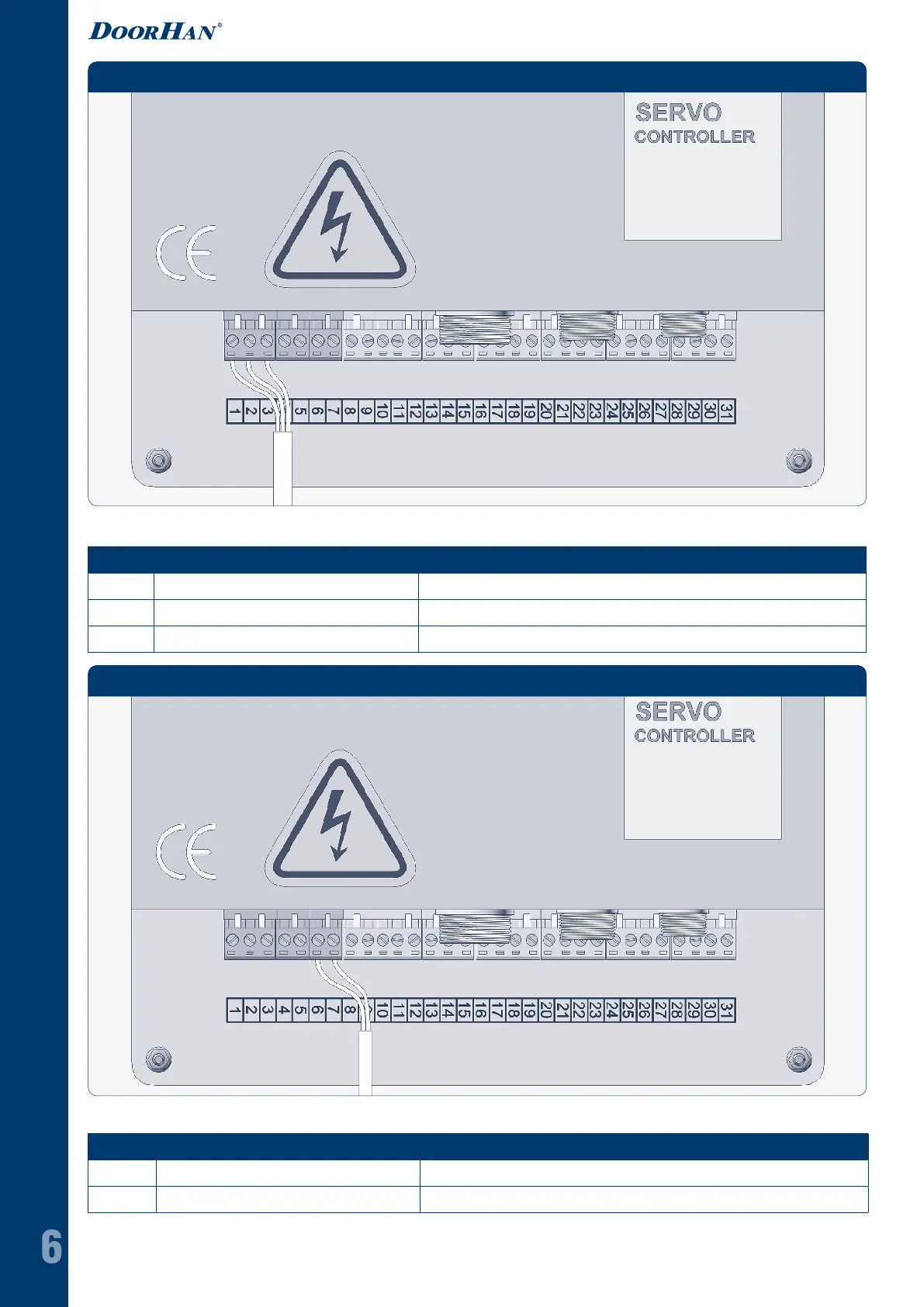

ELECTRICAL CONNECTIONS 0,75 KW
Fig. 7. 220 / 240 V main power connection (0,75 kW)
Fig. 8. Connection of motor brake (0,75 kW)
Port Function Wire colour
1 PE Yellow-green
2 L Brown*
3 N Blue*
Port Function Wire colour
6 + Red
7 - Blue
Table 4. 220 / 240 V main power connection (0,75 kW)
Table 5. Connection of motor brake (0,75 kW)
