DoorHan PE500B User Manual

7
No. Description
1 Install a jumper on terminals 25 and 26
2 Connect lamp to terminals 24 and 27*
Table 7. Connection of signal lamp or siren 24 V (0,75 kW)
* DoorHan does not provide a power wire. It is recommended to use a wire with a cross section of 0,75 mm
2
.
ELECTRICAL CONNECTIONS 0,75 KW

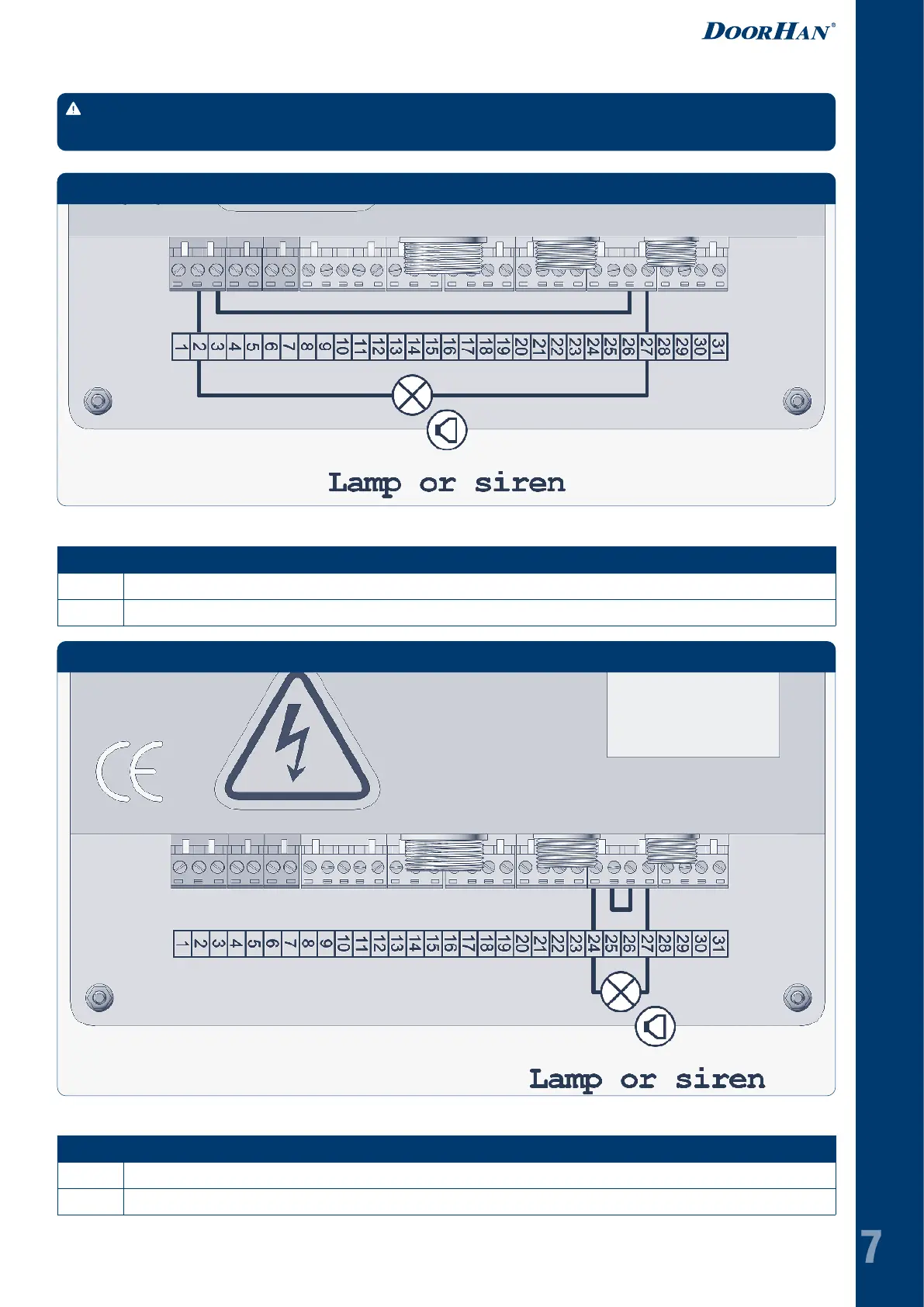

Fig. 9. Connection of signal lamp, part no. LAMP-PRO, or siren 220 V (0,75 kW)
Fig. 10. Connection of signal lamp or siren 24 V (0,75 kW)
No. Description
1 Install a jumper on terminals 3 and 26
2 Connect lamp (siren) to terminals 2 and 27*
Table 6. Connection of signal lamp or siren 220 V (0,75 kW)
WARNING!
Configure the connection of the lamp or siren in accordance with section 6.12 of this Manual.
4.2. ELECTRICAL CONNECTION DIAGRAMS OF OPTIONAL DEVICES
