Loop 1

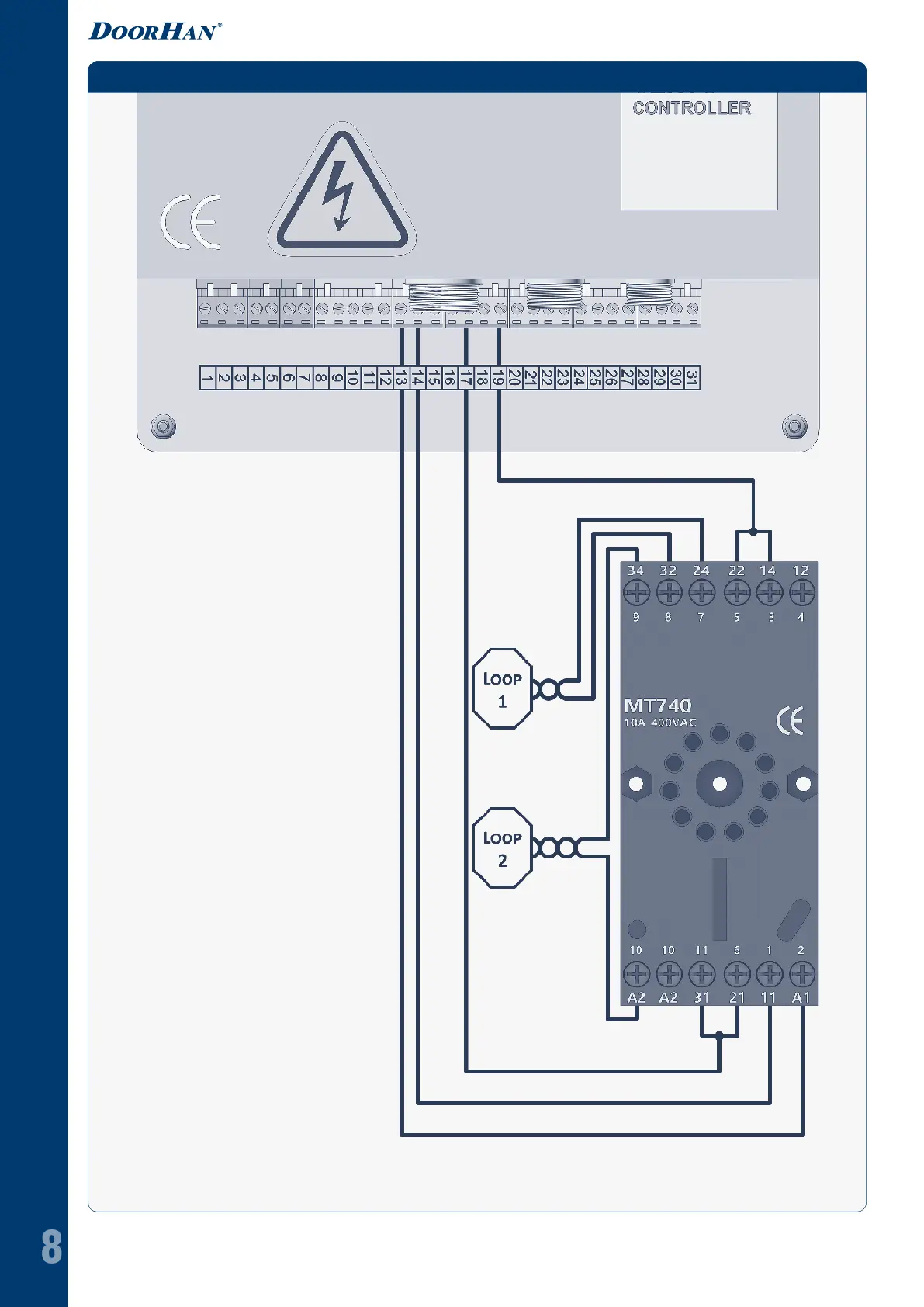

Fig. 11. Magnetic loop connection, part no. LOOP-2 (0,75 kW)*
Set the AUTO mode and select the required auto-closing time to ensure correct operation of the unit.
The inductive loop should be made of insulated copper wire with minimum cross section of 1,5 mm
2
.
The feeder shall be made of the same but twisted material (minimum 10 turns per 300 mm).
ELECTRICAL CONNECTIONS 0,75 KW

DoorHan PE500B Specifications

General

Brand	DoorHan
Model	PE500B
Category	Control Unit
Language	English
