Note. The buttons whose connection diagrams are shown in Fig. 12 and 13, allow you to open and close the door without
using the main controls. They can be installed, for example, on the opposite side of the door from the control unit.
ELECTRICAL CONNECTIONS 0,75 KW

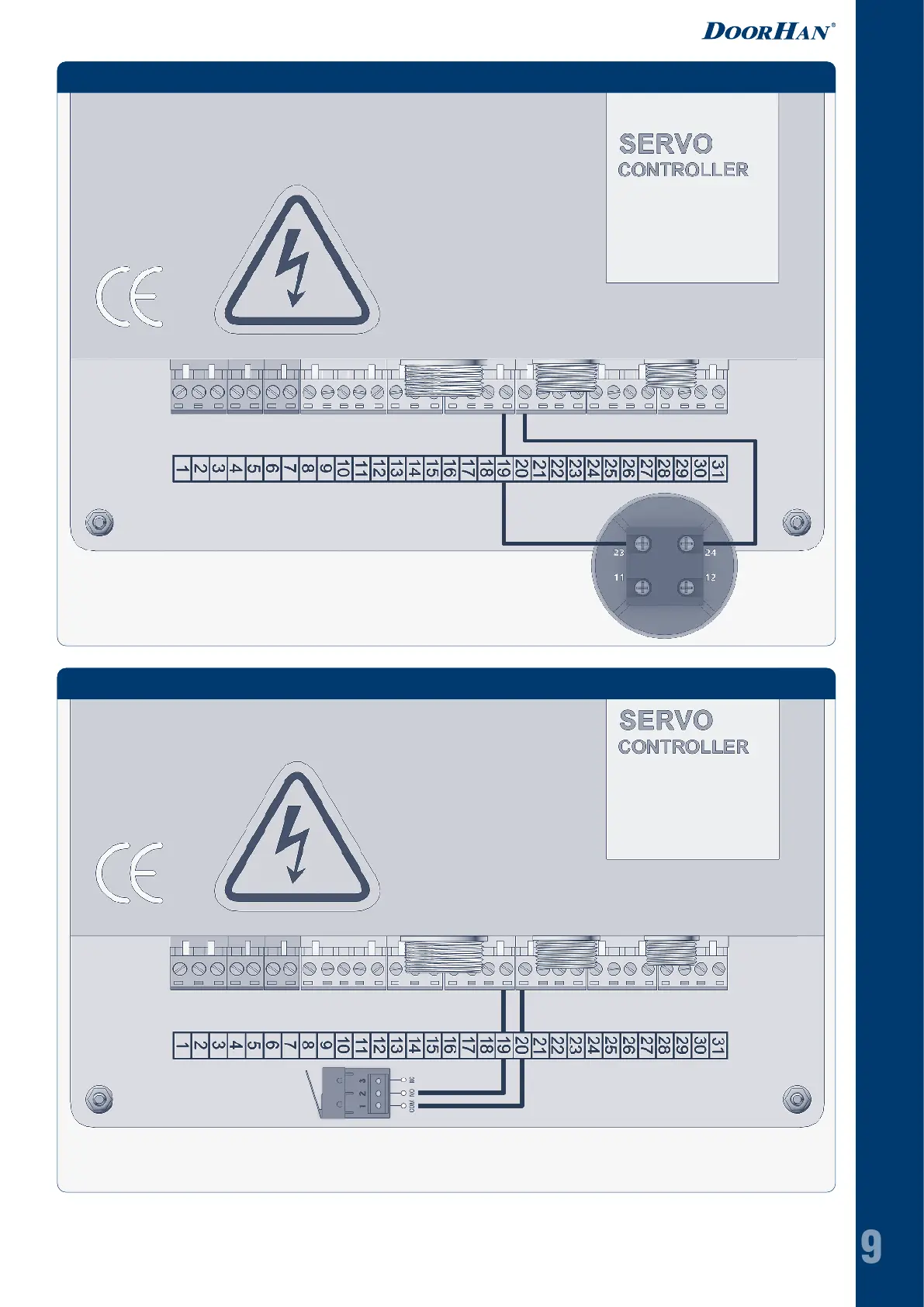

Fig. 12. Button connection, part no. DKH009 (0,75 kW)
Fig. 13. Key switch connection, part no. KEYSWITCH (0,75 kW)
