DoorHan PE500B User Manual

10
ELECTRICAL CONNECTIONS 0,75 KW

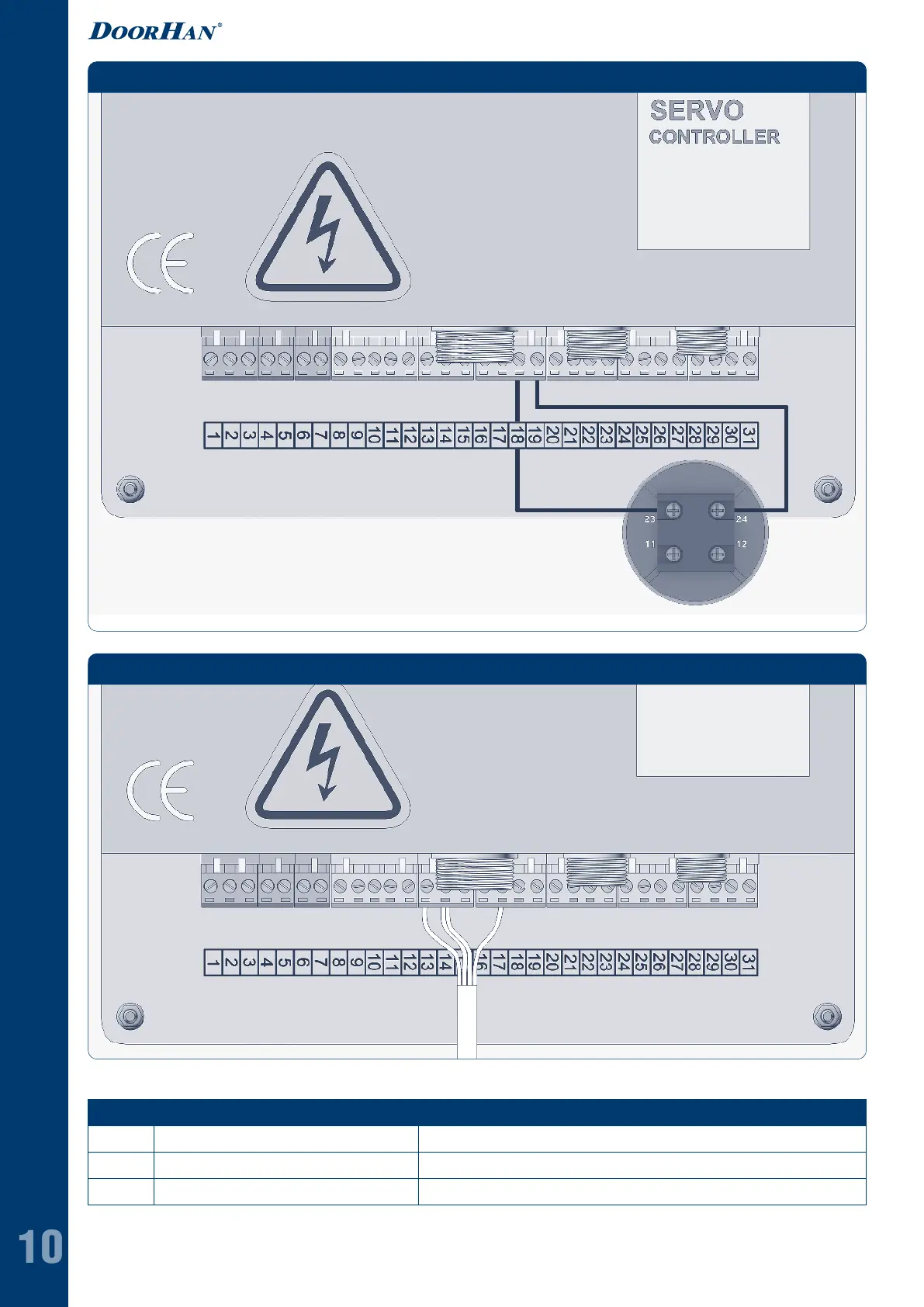

Fig. 15. Radar connection, part no. HSD5007 (0,75 kW)
Port Function Wire colour
13 DC 24 В + Red*
14 Com/Gnd Black and yellow*
17 Automatic opening, input Green*
Table 8. Radar connection (0,75 kW)
Set the AUTO mode and select the required auto-closing time to ensure correct operation of the unit.
* DoorHan does not provide a power wire. It is recommended to use a wire with a cross section of 0,75 мм
2
. Wirecolour may differ.
Fig. 14. Button connection, part no. DKH009. Partial opening function (0,75 kW)
