#12x1”Lag Screw
Pre-Drawn
Vertical Line
1/2 Door Frame
1/2 Door Frame
Pre-Drawn Hori-
zontal Line
Header Bracket
Assembly 02
05

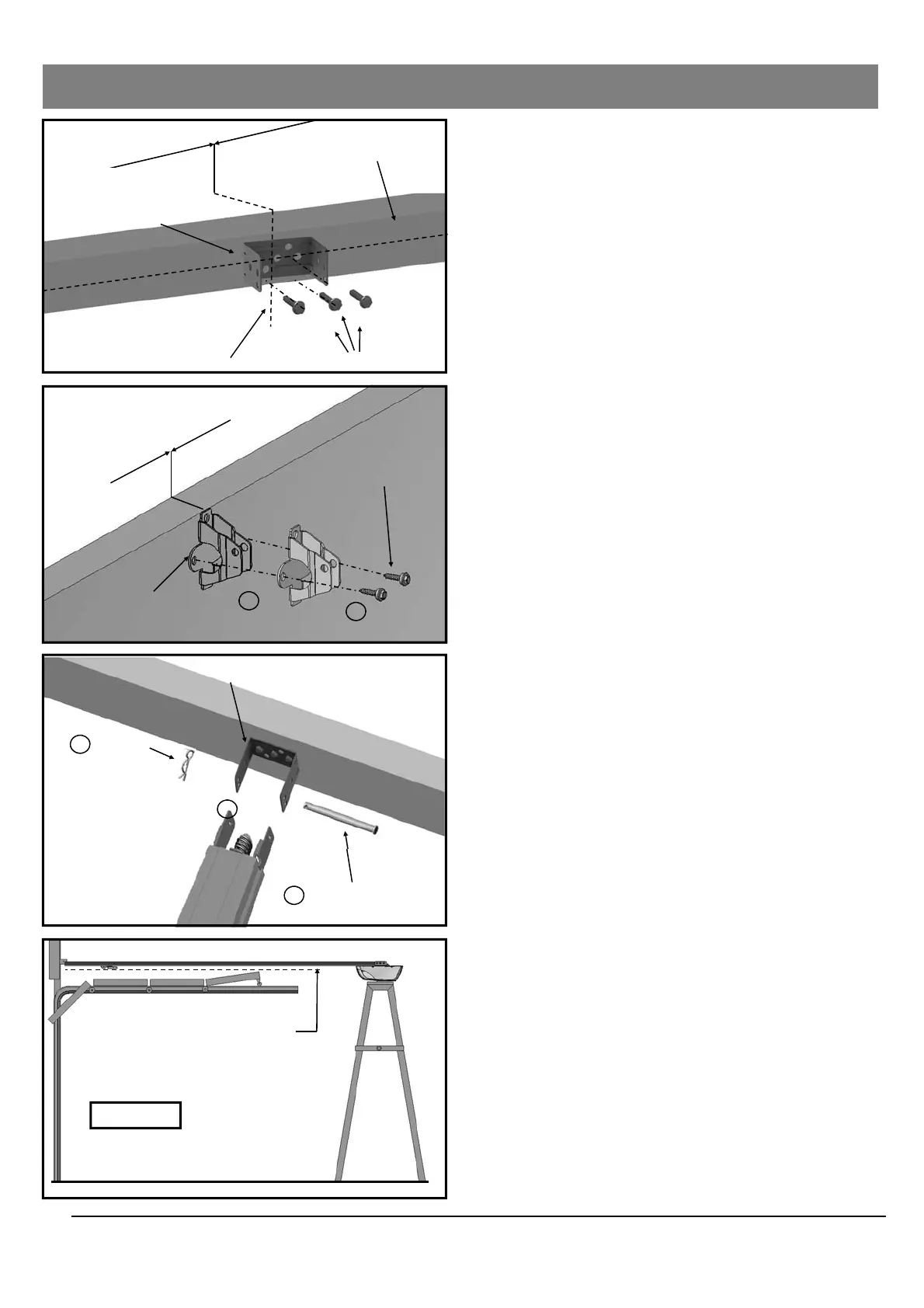

STEP 5.
Make a centerline on door frame, and cross the previous
horizontal line. Fasten the cross point with screws.
STEP 6.
Mount door bracket at the position of center of top panel
with screws.
STEP 7.
Connect track end and header bracket using clevis pin
long. Insert hitch pin into clevis pin long .
06
1/2 Door Panel
1/2 Door Panel
Clevis Pin
Hitch Pin
#12x1” Lag
Screw
Door Bracket
Header Bracket
1
2
1
2
3
5cm Clearance
Full Open
08
STEP 8.
Open the door to the full open position. Allow 5cm of
space between the rail and the door
To Next Page
