DOORWORKS GDC6 - Assembly 03

9
5/16”Hex Head
Machine Bolts
12
Assembly 03
10

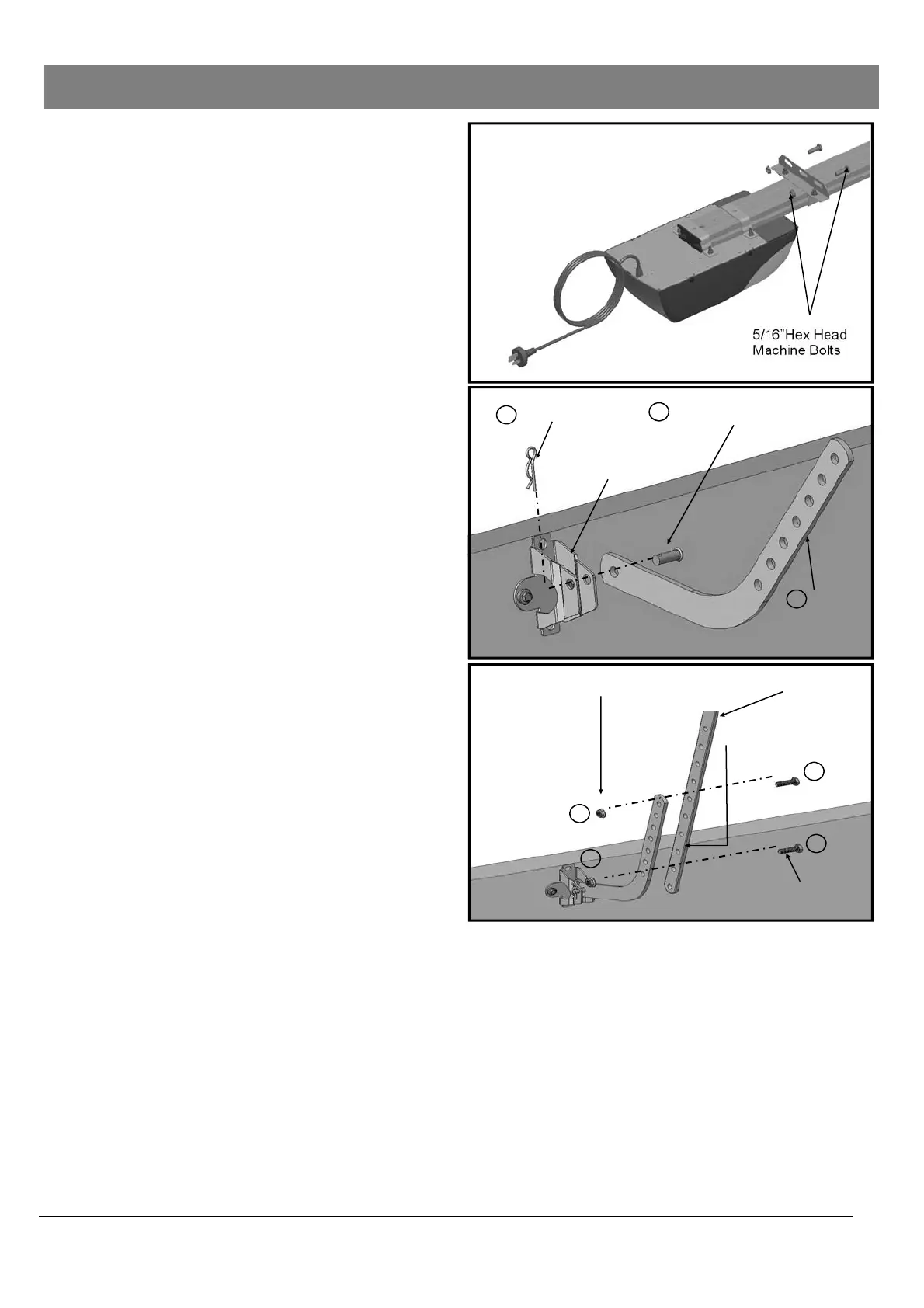

STEP 09.
Attach hanging bracket and angle bracket to the rail
STEP 10.
Insert curved arm into door bracket using clevis pin short.
STEP 11.
Connect straight arm and curved arm and adjust to the
required length. Fix it with hex bolts and flange nuts.
11
Door Bracket
Curved
Clevis Pin Short
Hitch Pin
Straight
Flange Nut 5/16”-18
Hex Bolt 5/16”-18x1
15-20°
09
3
2
1
1
1
2
2
