Doosan 7/53 - AC Power Schematic Diagrams

46 OPTIONS
7/53

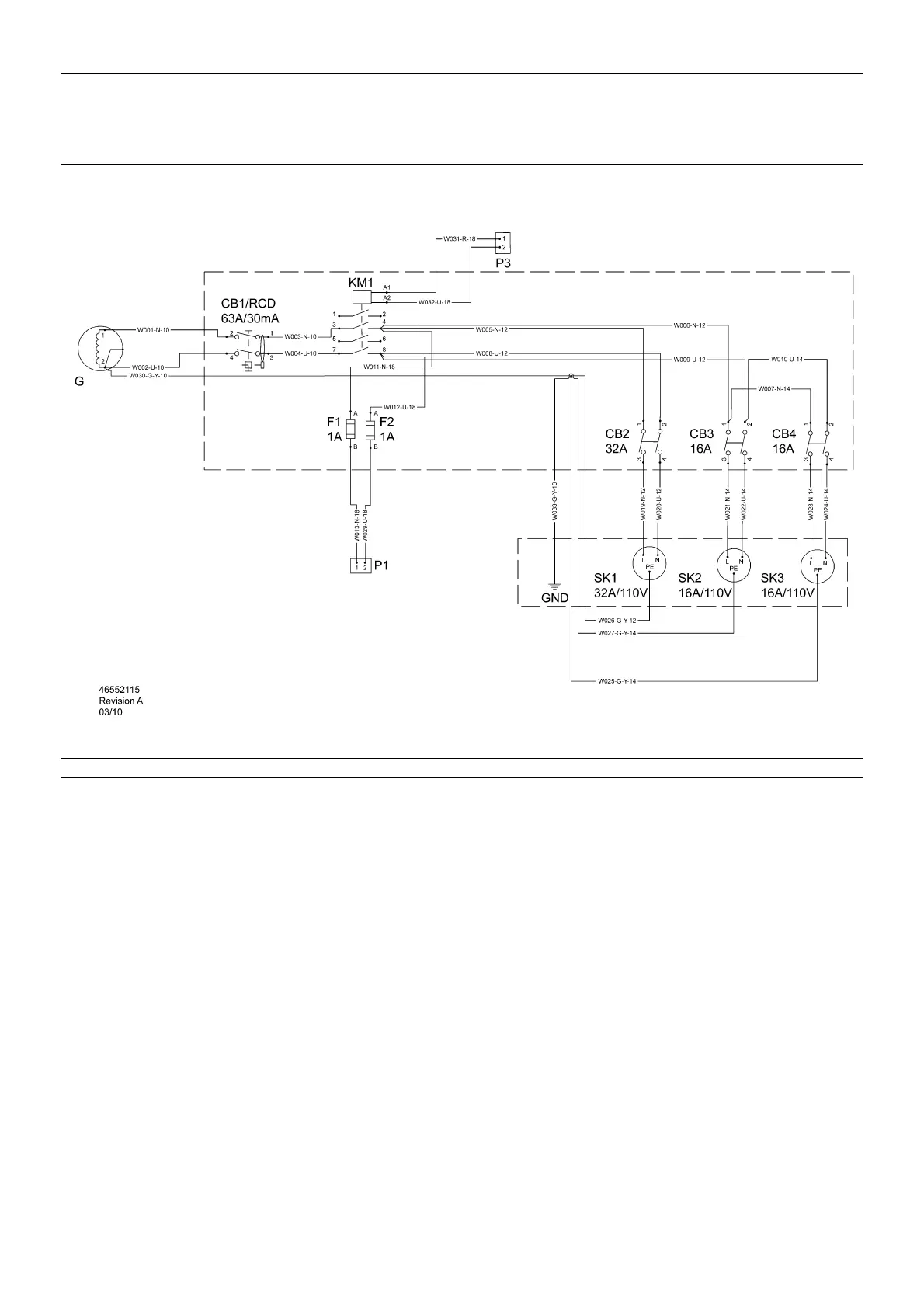

A.C. Electrical Power Schematic Diagram. 115V 1 - phase.
Valid for units with component box located inside the machine, above the
generator.
KEY
CB1/
RCD
Circuit breaker 63A
CB2 Circuit breaker 32A
CB3 Circuit breaker 16A
CB4 Circuit breaker 16A
F1 Fuse 1A
F2 Fuse 1A
G Alternator - 1 phase
GND Earth stud
KM1 Contactor
P1 Connector - voltmeter
P3 Connector - general enable switch
SK1 Socket outlet 32A/110V
SK2 Socket outlet 16A/110V
SK3 Socket outlet 16A/110V
