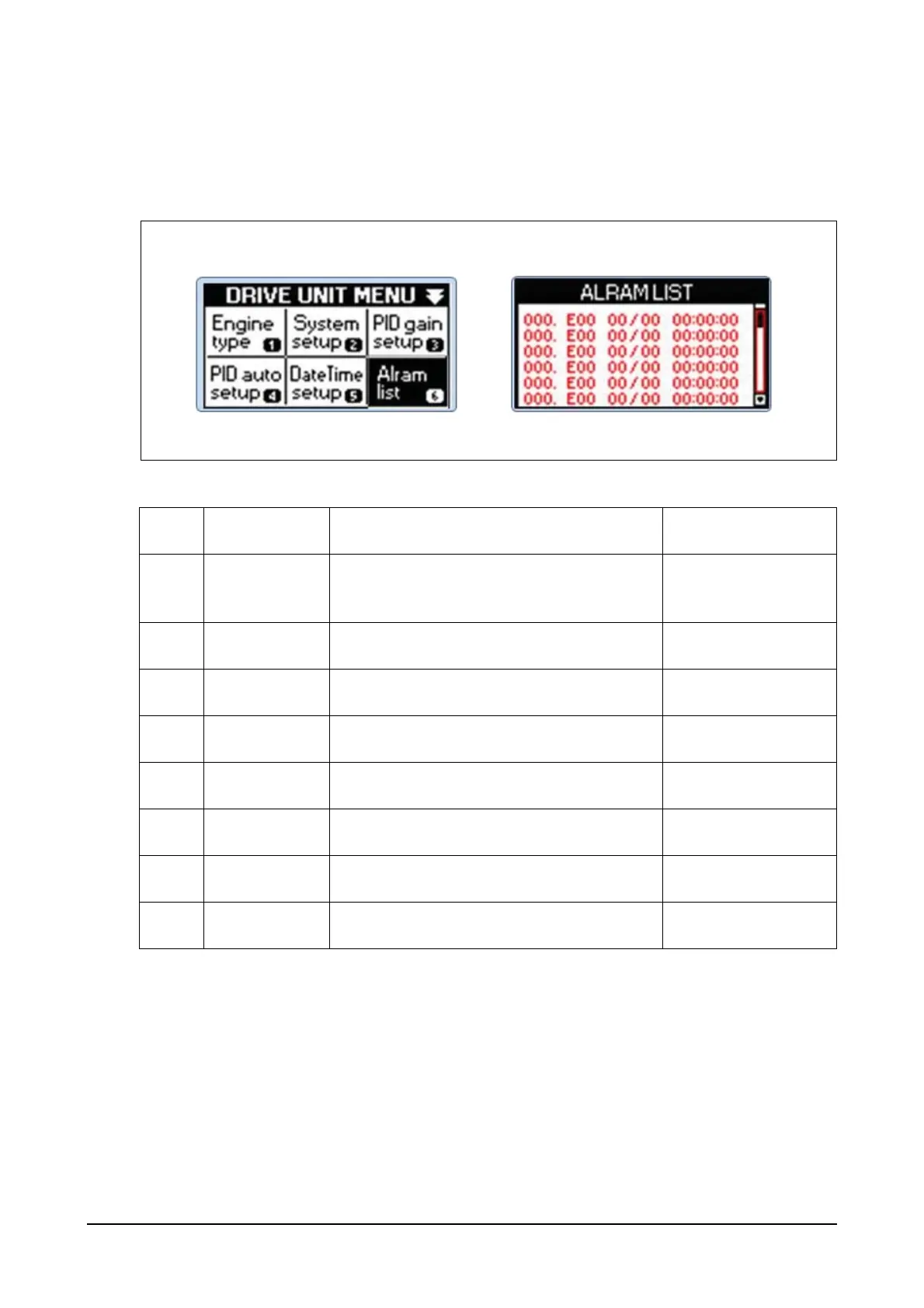

(6) Alarm list
Step 1) Press Menu button of the controller and then you can see DRIVE UNIT MENU.
Use direction buttons to select Alarm List menu and then press Enter button.
Step 2) Use Up, Down, Left and Right buttons in ALARM LIST menu to confirm the fault messages.
Alarm code table

EDL11160041
Alarm
Code
Alarm Item Description
Identified Alarm Out-
put
E01 Battery Low
When the battery voltage continues to be
lower than Low Battery voltage values for
more than 5 seconds
LCD alarm message,
Error LED lamp
E02 Battery High
When the battery maintains its voltage
exceeding 30VDC for more than 5 seconds
LCD alarm message,
Error LED lamp
E03 Pick-up Error
Problems in sensor signals when the engine
starts (Engine RPM lower than 600)
LCD alarm message,
Error LED lamp
E04 Pick-up Error
Problems in sensor signals during the engine
operation (Engine RPM 600 or higher)
LCD alarm message,
Error LED lamp
E05
Actuator
Current Short
Disconnection in the actuator or the connect-
ing circuits
LCD alarm message,
Error LED lamp
E06
Actuator
Current Broken
Short-circuits in the actuator or the connecting
circuits
LCD alarm message,
Error LED lamp
E07 Over Speed
Engine RPM exceeding the configured over
speed values
LCD alarm message,
Error LED lamp
E08 FET Drive Error
Damages to components in the actuator out-
put section inside the controller
LCD alarm message,
Error LED lamp
