Doosan AD222TI User Manual

HY-DP-MANUAL-001 22
3.11 System Booting and Functional Check
- You can check whether the product is properly installed or not.
▶ Normal System Booting
1) Insert the key into the key switch and rotate it to the right (ON).
2) DOOSAN logo will appear for 17 seconds while the system is
booting (refer to the image).
※ If the logo does not appear after rotating the key,
 Rotate it to the left (OFF) and then to the right (ON)
again
 Check the harness connection at the back of the panel
 Check whether the battery is discharged
3) The gauge display will appear after normal booting.
 Gauge: check whether each gauge hand is within the
normal range and ‘ERROR’ or ‘-----’ is displayed on the
screen.
※ Where ‘ERROR’ or ‘-----’ is displayed on the screen
 Check the harness connection
 Function keys: check whether each function key is active
on the screen by pressing them.
 Alarm: check whether the alarm is turned on.
 Battery: check whether the battery voltage is 16V or
lower.
4) Where the initial gauge screen is normal, press START button
for 3 seconds to start the engine (the time can be reduced to 1
second. Refer to Digital Panel Manager).
5) Check whether the operation is in normal RPM (initial operation
in 400RPM or faster with the oil pressure of 1bar or higher) and
whether alarm is turned on.

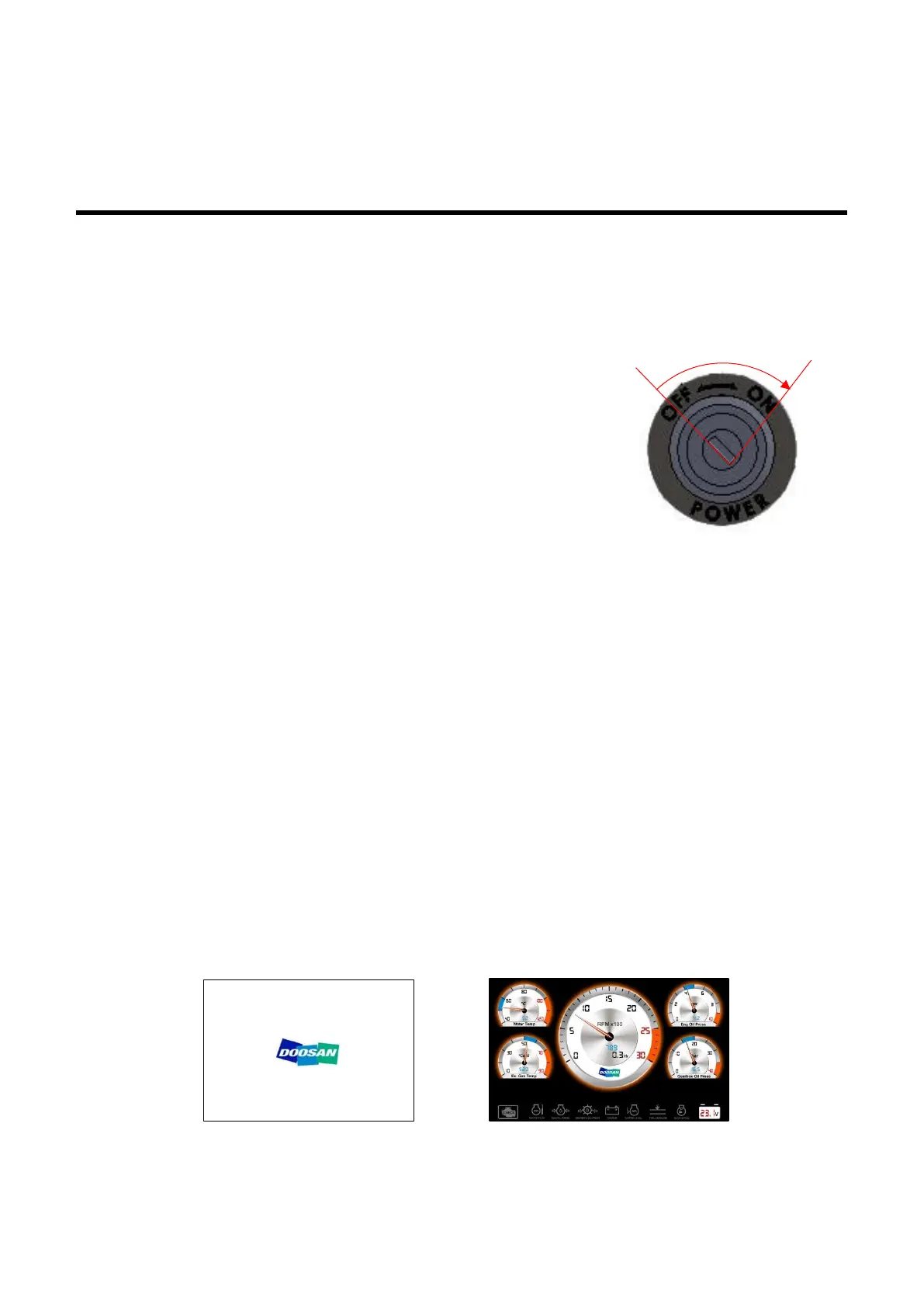

Key On
[Fig. 3-29] Gauge Display
[Fig. 3-27] Key Switch
[Fig. 3-28] DOOSAN Booting Logo
3. Part Names, Operation and Settings
