Doosan D55SC-5 Service Manual

D439E Service Manual 2. Engine Mechanical System (D439E)
89

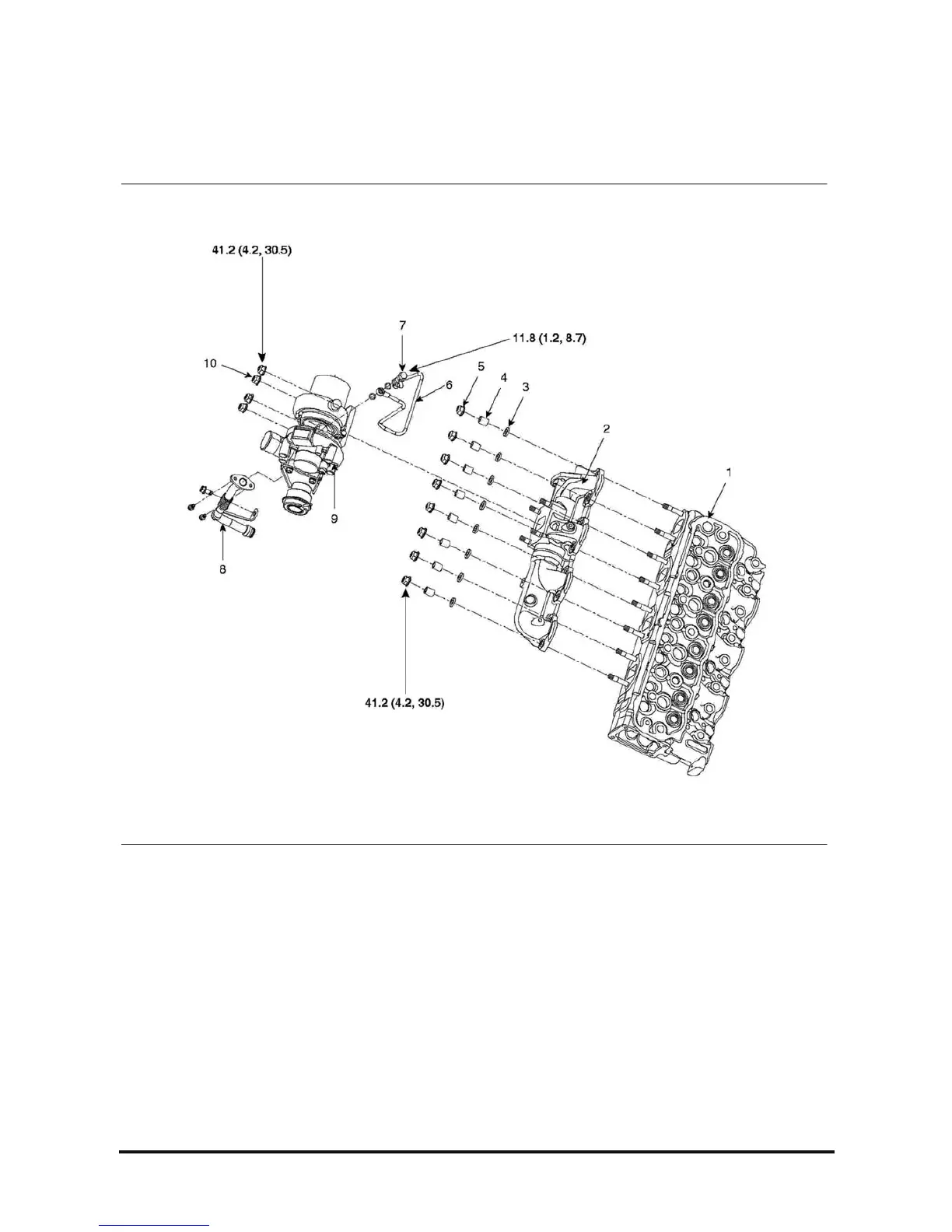

Turbocharger
Components
1. Cylinder head assembly
2. Exhaust manifold assembly
2. Plain washer
4. Distance piece
5. Exhaust manifold self lock flange nut (M10 x 1.25)
6. Oil pipe
7. Turbocharger oil pipe eye bolt (M8 x 1.25)
8. Oil return pipe
9. Turbocharger assembly
10. Self lock flange nut
Tightening Torque : Nm (kgf.m, Ib-ft)
