Operating Controls
14. Transmission Cutoff Switch
This switch changes the mode of the brake pedal from
"INCHING" to "NO INCHING."
O. In this position, the "NO INCHING" mode is selected.
In the "NO INCHING" mode, the power transmission
line is still connected when the brake pedal is
pressed, thus, making it easier to start off on an
incline. This mode is also suitable for traveling,
because both dynamic engine braking and the
service brake can be used when descending grades.
I. In this position, the "INCHING" mode is selected.
In this mode, the transmission is put in "NEUTRAL"
by pressing the left brake pedal. This mode is
suitable for a load handling operation. When the
accelerator pedal is pressed in this setting, more
power is concentrated on the load handling system,
to quicken the boom lifting speed.
NOTE: 1) Transmission "CUTOFF" function dose not
operate at 3rd and 4th gear for protection of
transmission.
2) Despite transmission "CUTOFF" switch, the
right brake pedal has braking function only.
15. Mirror Heating Switch
This switch is used to operate a heater installed in the
mirror. Press the switch and the mirror heater will remove
frost and ice from mirror.
O. "OFF" position.
I. "ON" position.

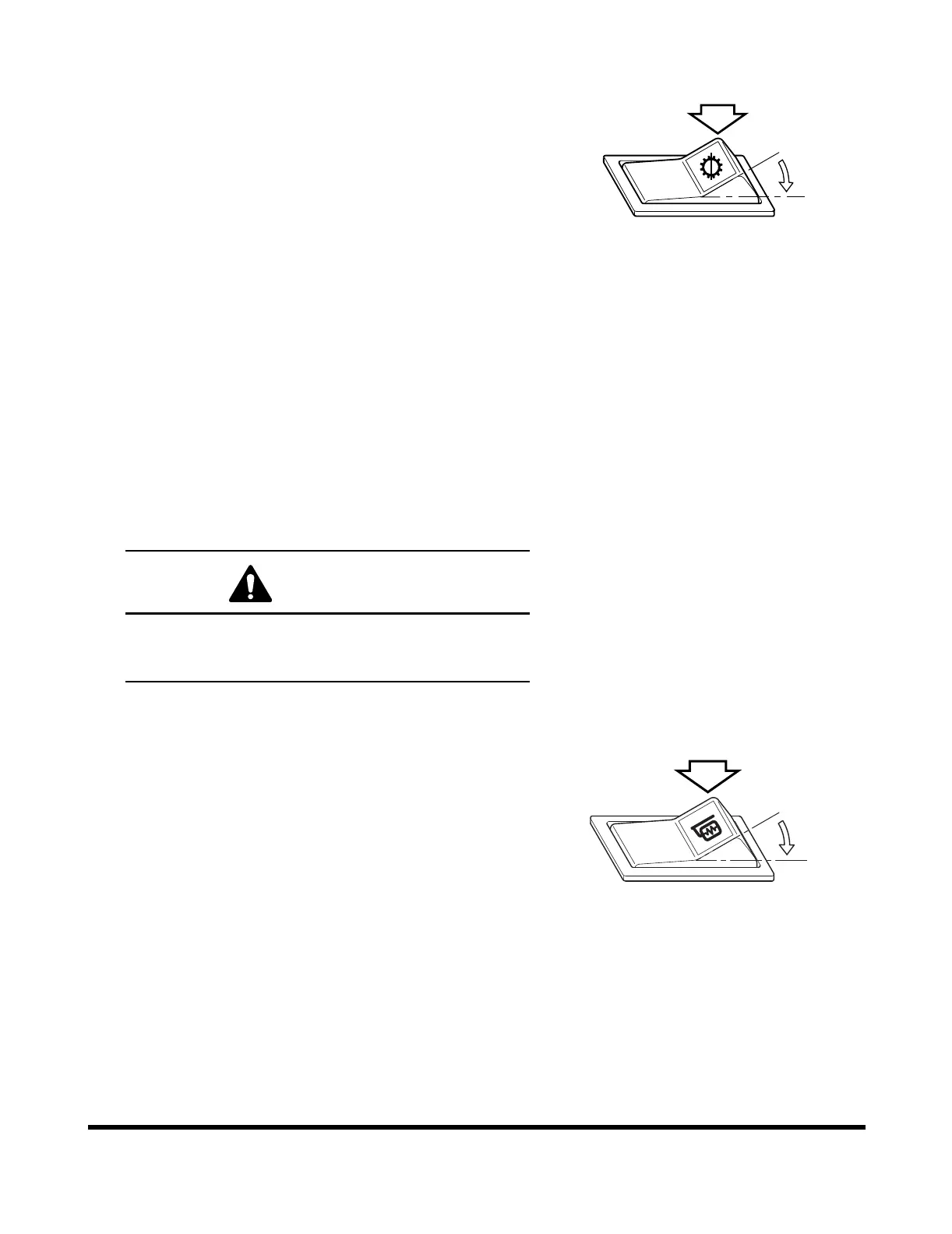

Figure 64
O
I
HA3O2018
WARNING!
When pressing brake pedal while traveling or working
on a slope, set this switch to "O" for dynamic engine
braking.
O
I
FG004187
Figure 65
