Doosan DL160 - Front Instrument Panel

OP000754
2-13
Operating Controls

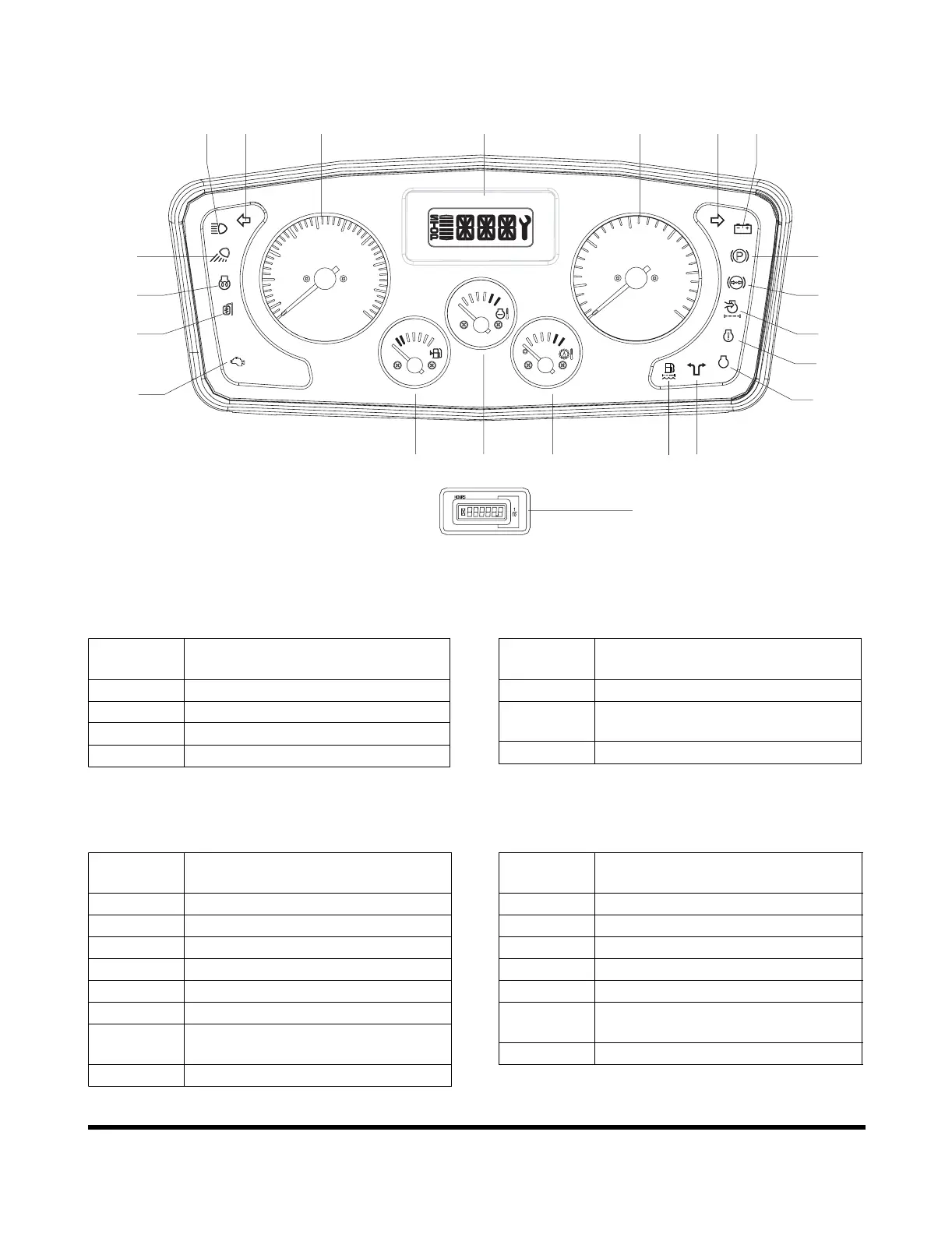

FRONT INSTRUMENT PANEL
Gauges
Warning and Indicator Lights
FG013044
7
3
45
6
11
13
12
10
928
1
21
20
17
18
16
14 15
19
22
50
km/h
0
20
10
40
30
30
x100r/min
0
10
15
5
20
25
STOP
STOP
STOP
Figure 21
Reference
Number
Description
1 Transmission Display
2 Speedometer
3 Tachometer
4 Fuel Gauge
5 Engine Coolant Temperature Gauge
6
Transmission Oil Temperature
Gauge
7 Hour Meter
Reference
Number
Description
Reference
Number
Description
8 Left Turn and Hazard Warning Light
9 High Beam Indicator Light
10 Work Light Indicator Light
11 Preheat Indicator Light
12 Mirror Heating Indicator Light
13 Not Used
14
Right Turn and Hazard Warning
Light
15 Battery Warning Light
16 Parking Brake Indicator Light
17 Brake Fluid Pressure Warning Light
18 Air Cleaner Clogged Warning Light
19 Engine Warning Light
20 Engine Stop Light
21
Emergency Steering Indicator Light
(Optional)
22 Water Seperator Light
Reference
Number
Description
