G420F(FE) Service Manual Chapter 3. Engine Mechanical System 79
REMOVAL
1. Drain engine oil.
2. Remove the drive belts.
3. Turn the crankshaft and align the white groove on
the crank-shaft pulley with the pointer on the lower
cover.
4. Remove the timing belt.
5. Remove the oil pan and oil screen
5. Remove the oil pan and oil screen.

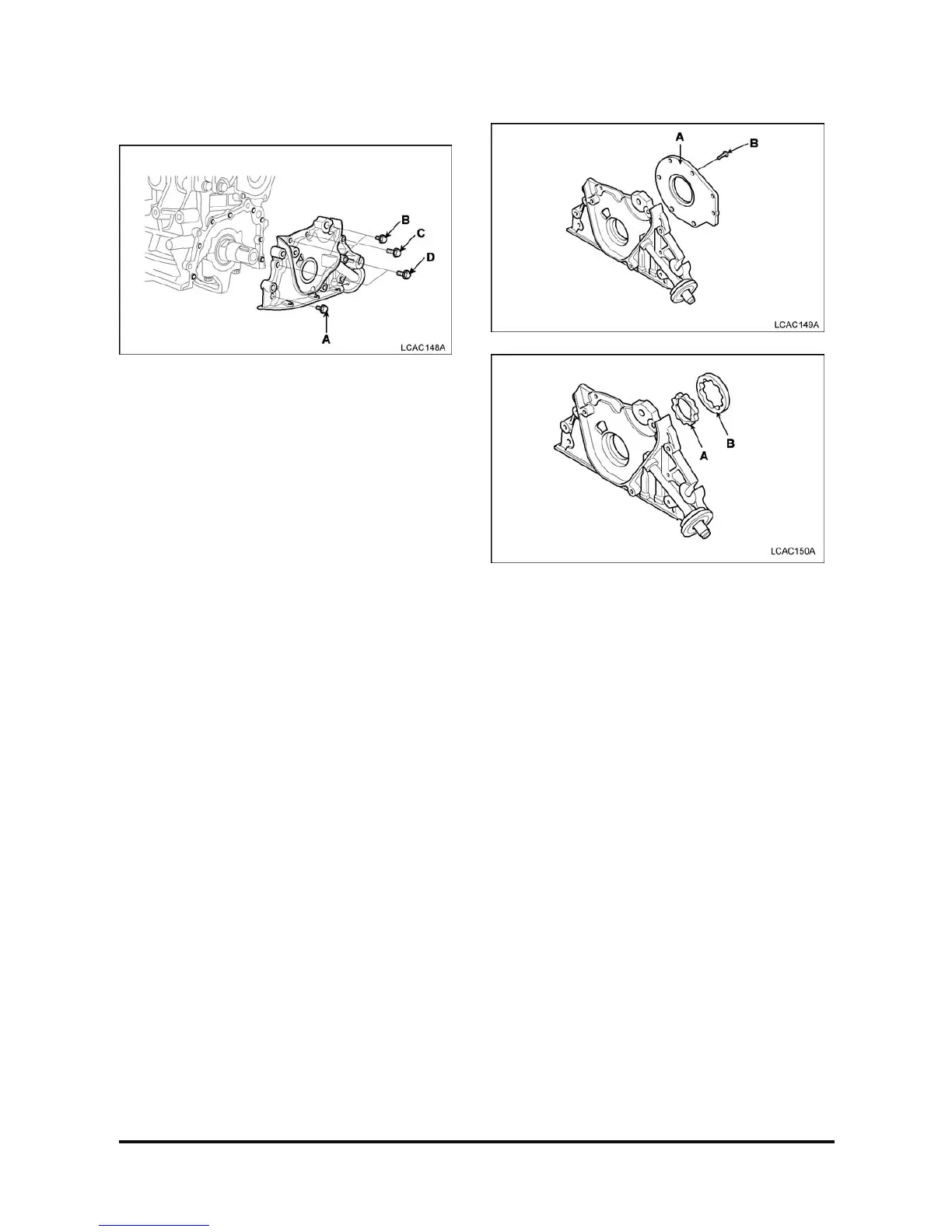

6. Remove the front case.
1) Remove the screws (B) from the pump housing,
then separate the housing and cover (A).
2) Remove the inner (A) and outer (B) rotos.
To Next Page
