Doosan HP5100 - 2163 ATC Door Open;Close Alarm

258
HP5100 HP51MTE87

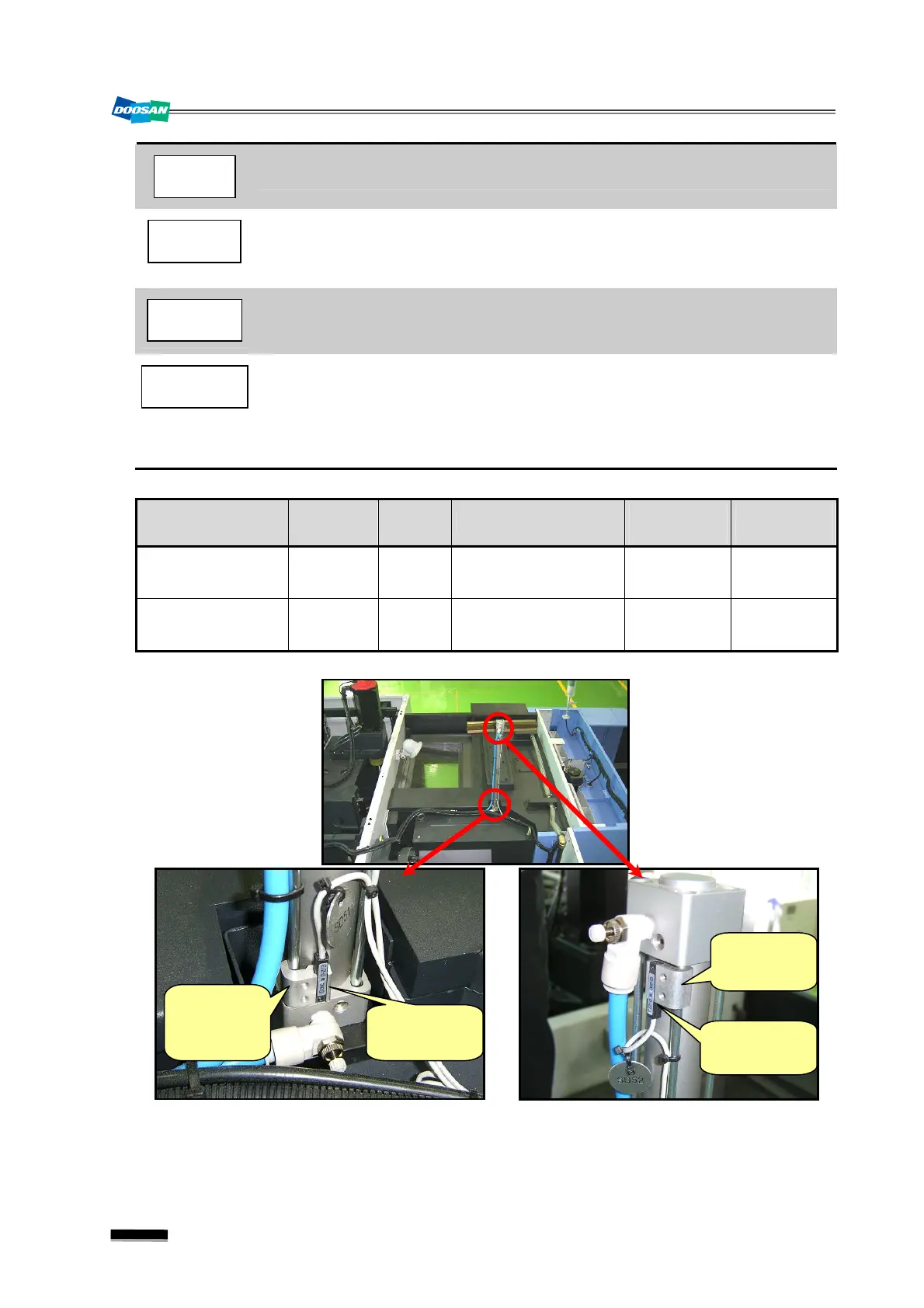

ATC Door Open/Close Alarm
The ATC Door Open/Close command was not completed within 5
seconds, the Door Open and Close signals were detected simultaneously
,
or five seconds passed without either signal being detected.
Faulty adjustment of the ATC Door Close Check Reed Switch ①
Problems with the ATC Door Close detection Switch or related parts ②
Loosen the Reed ①
Switch Holder security Screw and move it towards
the Shaft to secure the place where the Sensor LED lights up.
Check the Reed Switch, Connection cables, and I/O board ② in order
.
Make any necessary repairs or replacements.
Signal Address Symbol I/O
Connector
(Pin)
Numbering
Tube
ATC Door Open
X8.0
ATDO.M
-SD51 Input Module Slot 08 XJ412 (07) SD51
ATC Door Close
X8.1
ATDC.M
-SD52
Input Module Slot 08 XJ412 (24) SD52
Solution
Cause
Status
2163
ATC Door
Close Check
Reed
Switch
Holder
ATC Door
Open Check
Reed
Switch
Holder
