Doosan MX 2000 - Page 7

5
MX 2000/2500/3000 MX25ATCE26

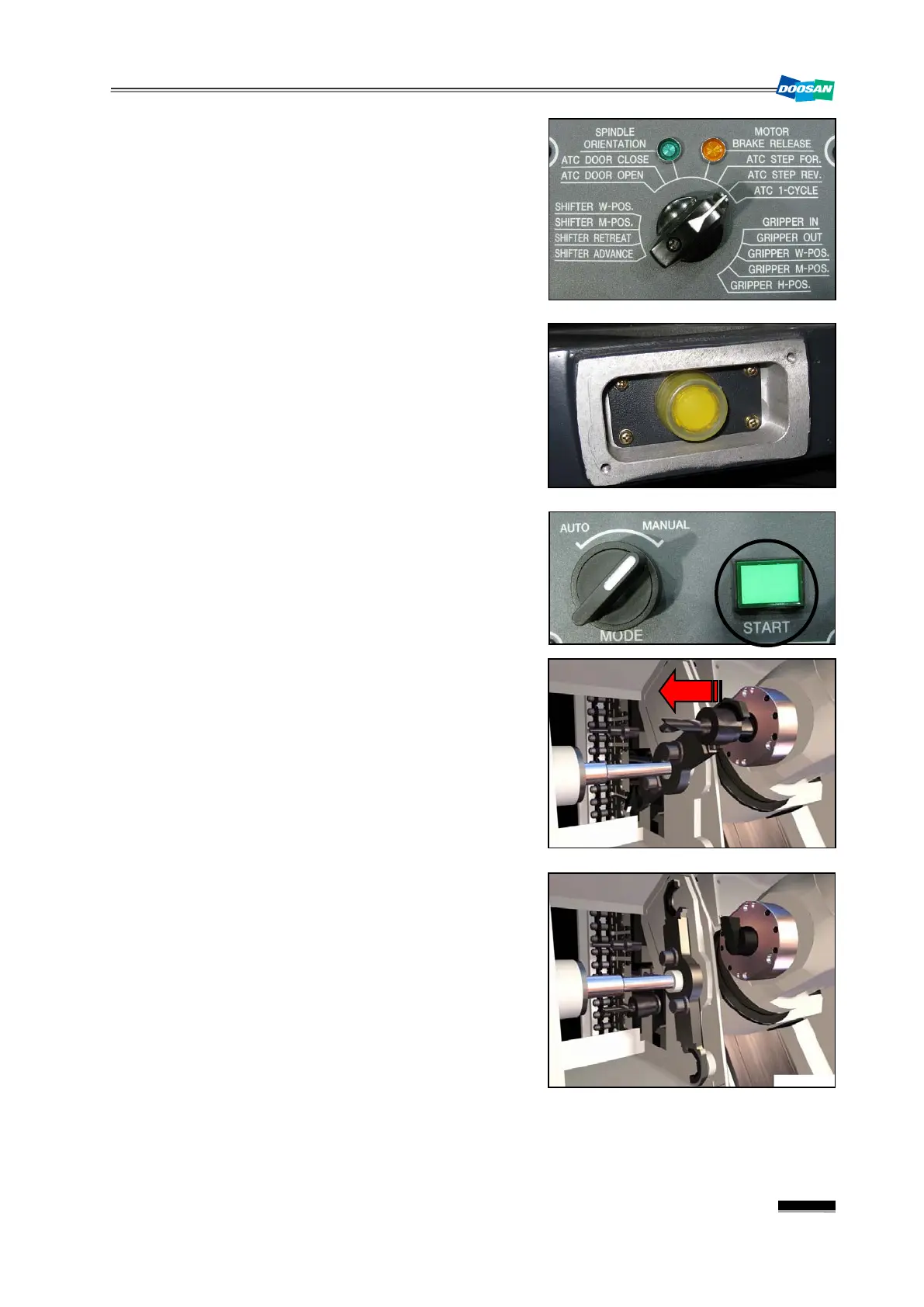

4) Turn the mode switch in the ATC manual OP to
“ATC STEP REV.” .
5) If the spindle is in the process of tool clamping,
manually perform the tool unclamping.
6) Pull out the tool (that is supposed to change) from
the changer arm.
① Repeat pressing briefly the “START” button in
the ATC manual OP until the main changer arm
is removed completely from the spindle.
② Press the locking pin of the changer arm with
force before pulling out either tools.
7) When done, repeat pressing briefly the “START”
button until the changer arm moves to the home
position.
☞ If the main changer arm doesn't move further
even by your pressing the
“START” button,
this indicates that the main changer arm
reaches its home position.
