Doosan PU222TI User Manual

Technical Information
- 24 -

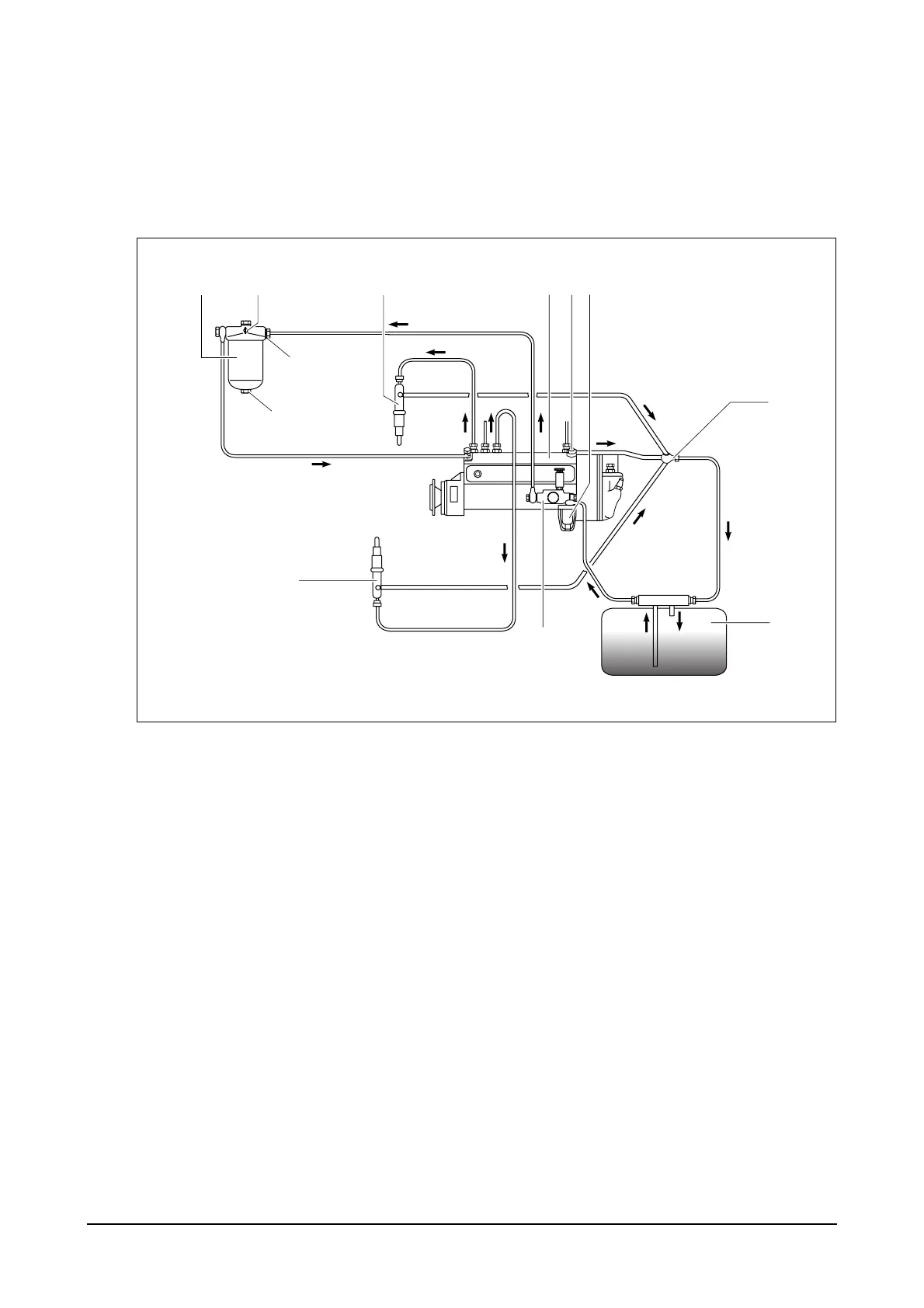

2.2.8. Fuel system
The fuel is delivered by the fuel lift pump via the fuel filter to the injection pump and from there to the
injectors.
The fuel is sprayed into the cylinder through nozzles fitted in screw-fit injections in the cylinder heads.
Excessive fuel delivered and leak fuel from the injectors flow through the return pipe back to the tank.
1. Fuel tank 5. Fuel pipe connector
2. Strainer 6. Injection pump
3. Fuel Filter 7. Injector
4. Fuel filter assembly 8. Fuel pressure relief valve
4a. Fuel water drain plug 9. Fuel return pipe
4b. Air bleeding plug
(for fuel filter)
10. Fuel feed pump
4
5
4b
4a
7
7
10
1
9
682
EA6O3003

Doosan PU222TI Specifications

General

Engine Model	PU222TI
Number of Cylinders	6
Compression Ratio	17.5 : 1
Fuel System	Direct Injection
Aspiration	Turbocharged
Cooling System	Water-cooled
Lubrication System	Forced Feed
Emission Compliance	Tier 3
Max Torque	800 Nm @ 1400 RPM
