Dorel DL7519E - Page 14

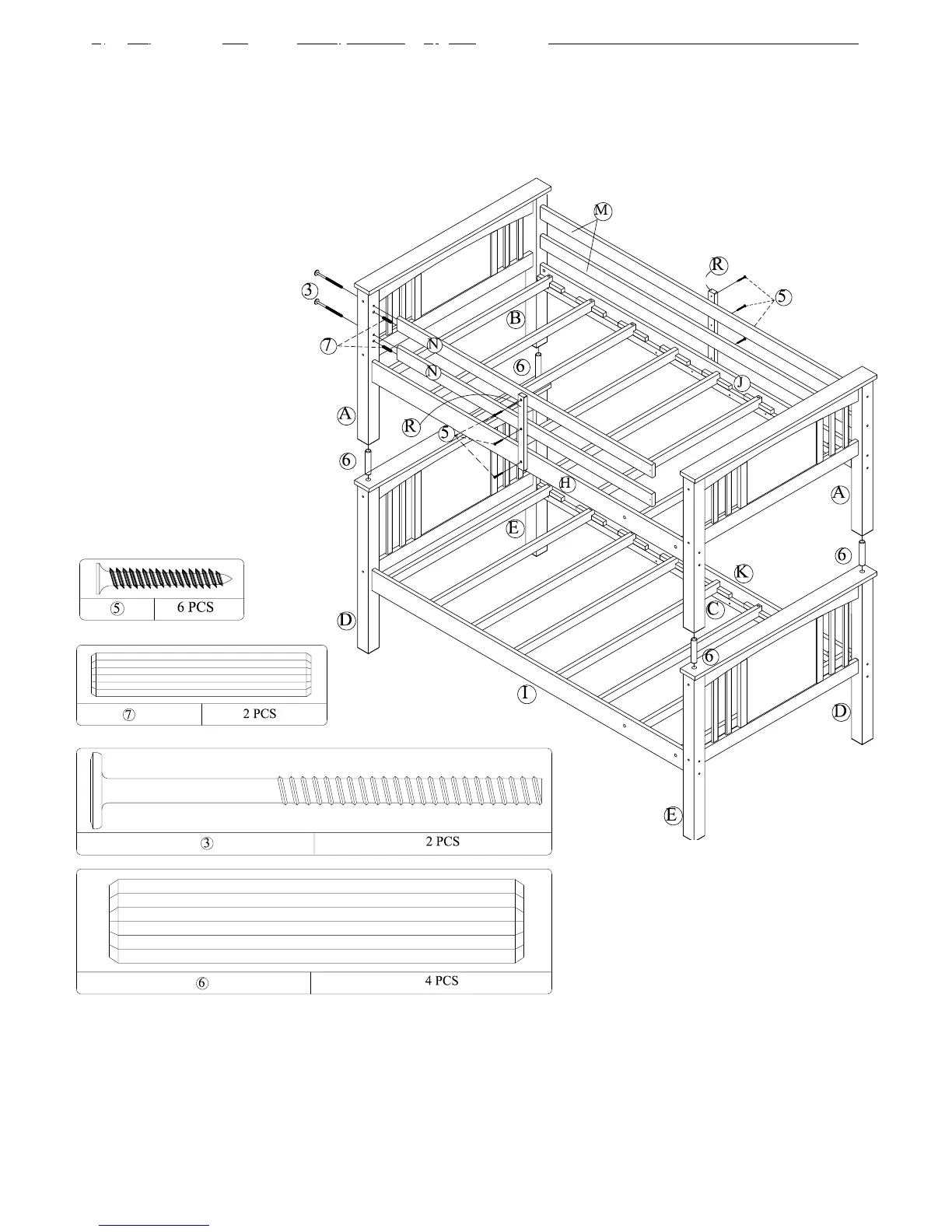

STEP 7
Insert wood dowels (7) into the holes in the ends of short guardrails (N). Attach short guardrails (N) to top
post (A) with wood joint connectors (3).
Attach the guardrail leg (R) to the short guardrails (N) and top side rail (H) with flat head wood screws (5).
Attach another guardrail leg (R) (on the other side of the bed) to long guard rails (M) and top side rail (J)
with flat head wood screws (5).
TWIN BUNK BED
DL7519E / DL7519W
Place four wood dowels (6) into the holes in the bottom posts (D and E). Stack the top bunk onto the
bottom bunk with the help of another person.
5
5
7
3
R
R
N
M
K
J
I
H
C
B
A
6
6
5
5
7
3
R
R
N
M
K
J
I
H
C
B
A
6
6
5
5
7
3
R
R
N
M
K
J
I
H
C
B
A
6
6
