STEP 8
TWIN BUNK BED
DL7519E / DL7519W

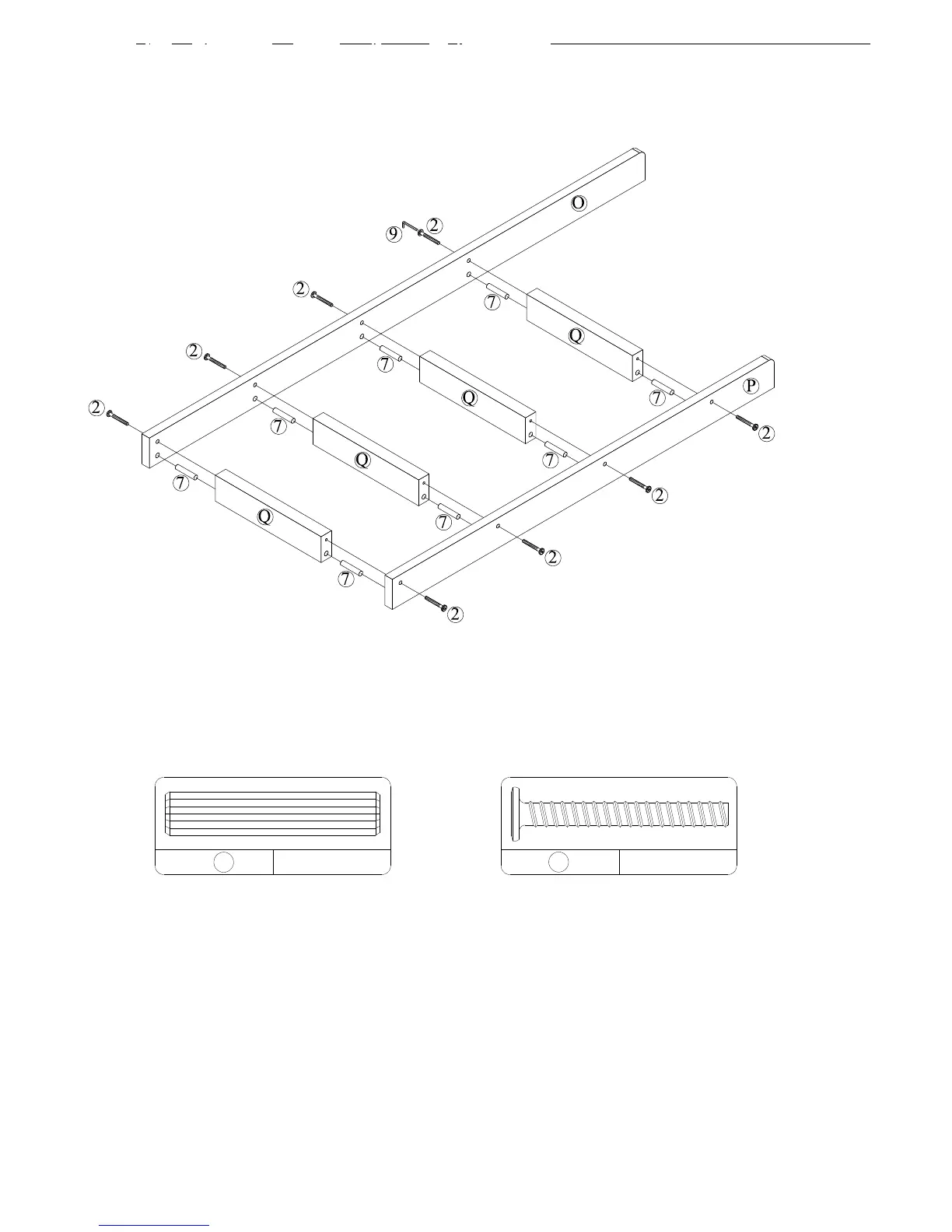

To assemble the ladder, insert wood dowels (7) into the end of the ladder steps (Q). Attach long
ladder end (O) and short ladder end (P) to ladder steps (Q) with wood joint connectors (2), using
Allen key (9).
8 PCS
2
7
8 PCS
