DCP2000
out A
out B
MB-4K 1
in A
in B
out1,2,3,4 A
out1,2,3,4 B
MB-4K 2
in A
in B
out1,2,3,4 A
out1,2,3,4 B
Projector 1
in1,2,3,4 A
in1,2,3,4 B
Projector 2
in1,2,3,4 A
in1,2,3,4 B

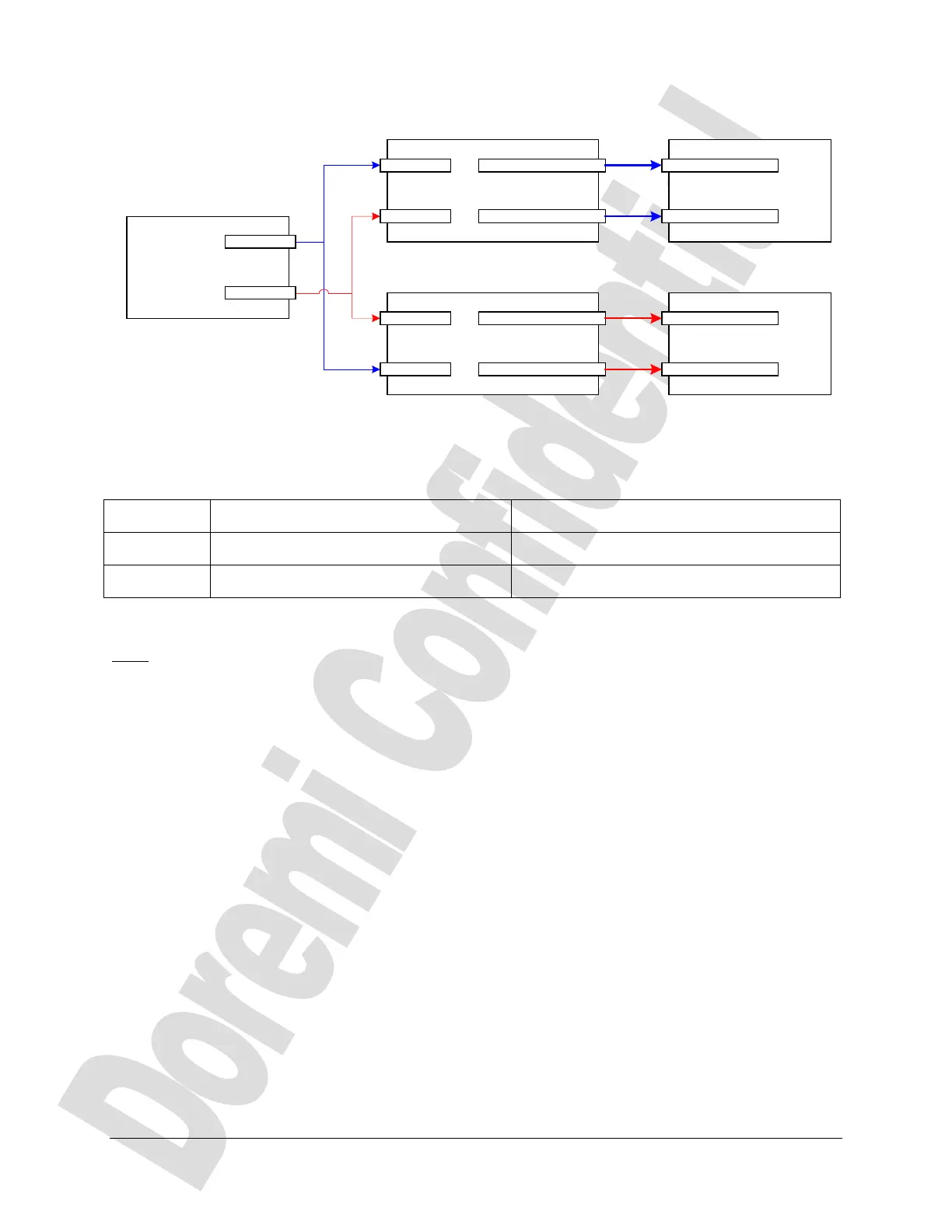

Figure 3: 3D/48fps Configuration using 2 MB-4K
In the configuration shown in Figure 3, the second MB-4K is connected to the DCP-2000 with
the input inverted. The output of each unit is shown in Table 1.
4:4:4 XYZ DualLink input (2D 24fps) 4:2:2 YCxCz SingleLink Input (3D/48fps)
MB-4K 1 4:4:4 XYZ 4K at 24fps 4K left eye/even frames at 24fps
MB-4K 2 Same as MB-4K 1 4K right eye/odd frames at 24fps
Table 1: Output of each Unit in a 2 Units Configuration for 3D Support
Note
: on version until MB 0.1j included, the main link (link A) is always input A.
