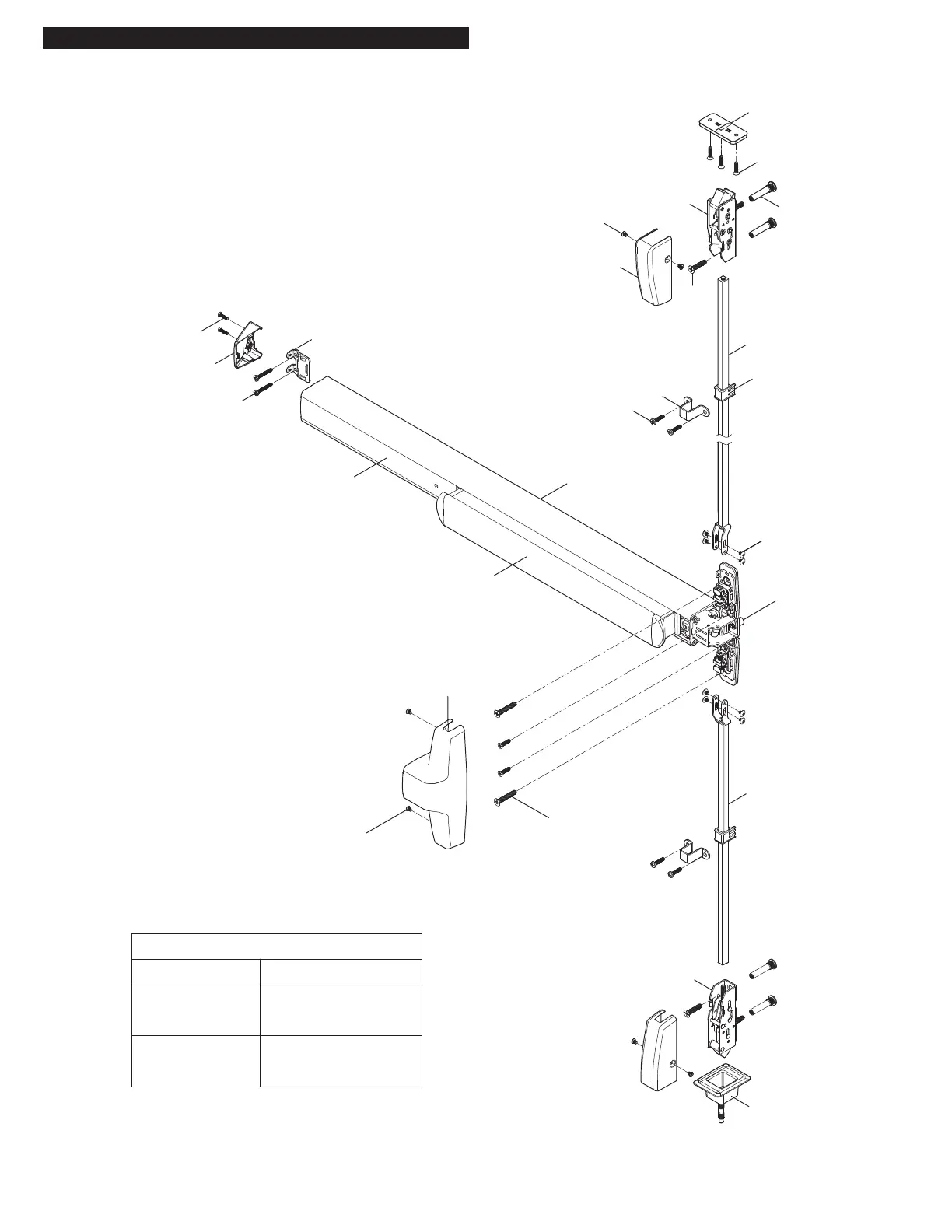

Dorex DX2 PV - COMPONENTS OVERVIEW

COMPONENTS OVERVIEW
2 / 12
Cover
Cover Screws
Center
Case
Screws
Center Case
Top Strike
Top Latch
Top Rod
Rod Guide
Bottom Latch
Latch Cover
Sleeve
Side Screws
Rod Guide Screws
Bottom Strike
Latch Cover Screws
Latch
Screws
Strike Screws
Sex Bolts
End Cap Bracket Screws
End Cap
End Cap Screws
End Cap Bracket
Cover Plate
Mechanism Case
Spade Drill
5/8"
(For Wood Door)
Tap
Drill Bits
SPECIAL TOOLS REQUIRED
#25,1/8",1/4",
5/16",13/32",#7
Bottom Rod
Push Bar
Side Screws
#8-32,#10-24,1/4-20
