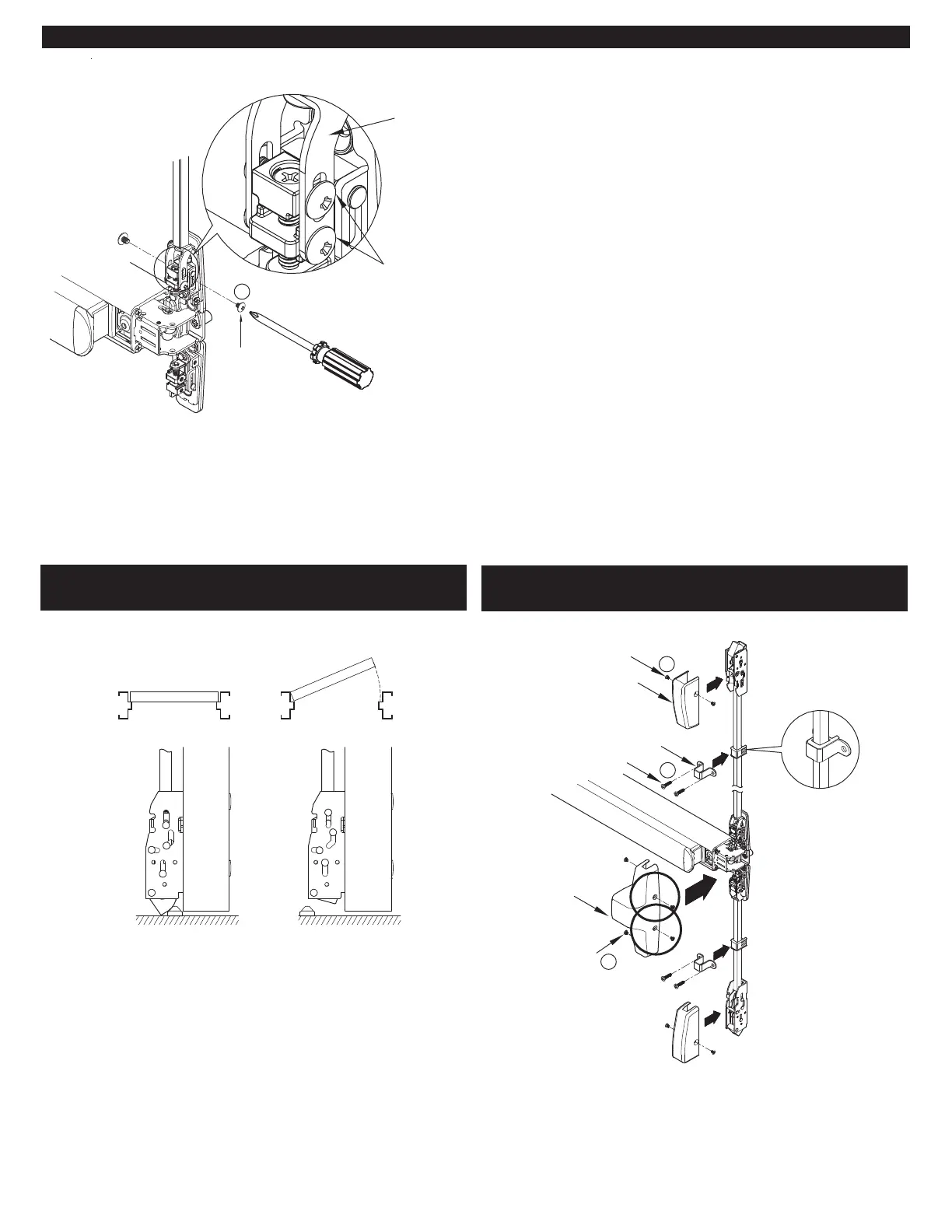

11. SECURE TWO (2) SIDE SCREWS
9 / 12
12. ADJUST BOTTOM ROD WITH DOOR OPEN
(TOP LATCH RETRACTED)
13. INSTALL ROD GUIDES AND COVERS
WITH SCREWS
Connecting Bar
Tighten Four(4)
Side Screws
Second
Side
Screws
L
Close Open
I
D
I
Cover
Cover
Screws
Rod Guide
Latch Cover
Rod Guide Screws
Latch Cover Screws
Install rod guide
at mid point
between latches
and center case.
Fasten two additional side screws through the second holes
in the connecting bar and in the retractor for both the bottom
and top connecting bars.
1. Depress exit device push bar and ensure that the bottom
latch is retracted and stays retracted after the door is
opened. Adjust the retractor screw if needed.
2. Close the door and ensure that the bottom latch engages
in the bottom strike. Adjust strike on the floor or threshold
to ensure proper latchbolt/strike engagement.
3. Open and close door few times and verify that both
latches are engaged and the latch bolt is deadlocked.
4. Secure side screws firmly when final adjustments are
completed.
1. Position rod guides midway between the latches and the
centercase, centered on rods. Mark mounting holes, then
drill pilot hole or drill and tap for fasteners. Secure rod
guides with screws.
2. Install covers on the center case and latches and secure
with screws.
