MAINTENANCE
Maintenance, replacement, or repair of the emission control device and systems may be performed by
any non-road engine repair establishment or individual.
WARNING
• Always be sure to stop the engine before inspecting the brush cutter for problems or performing
maintenance.
• Never alter the brush cutter or take the engine apart.

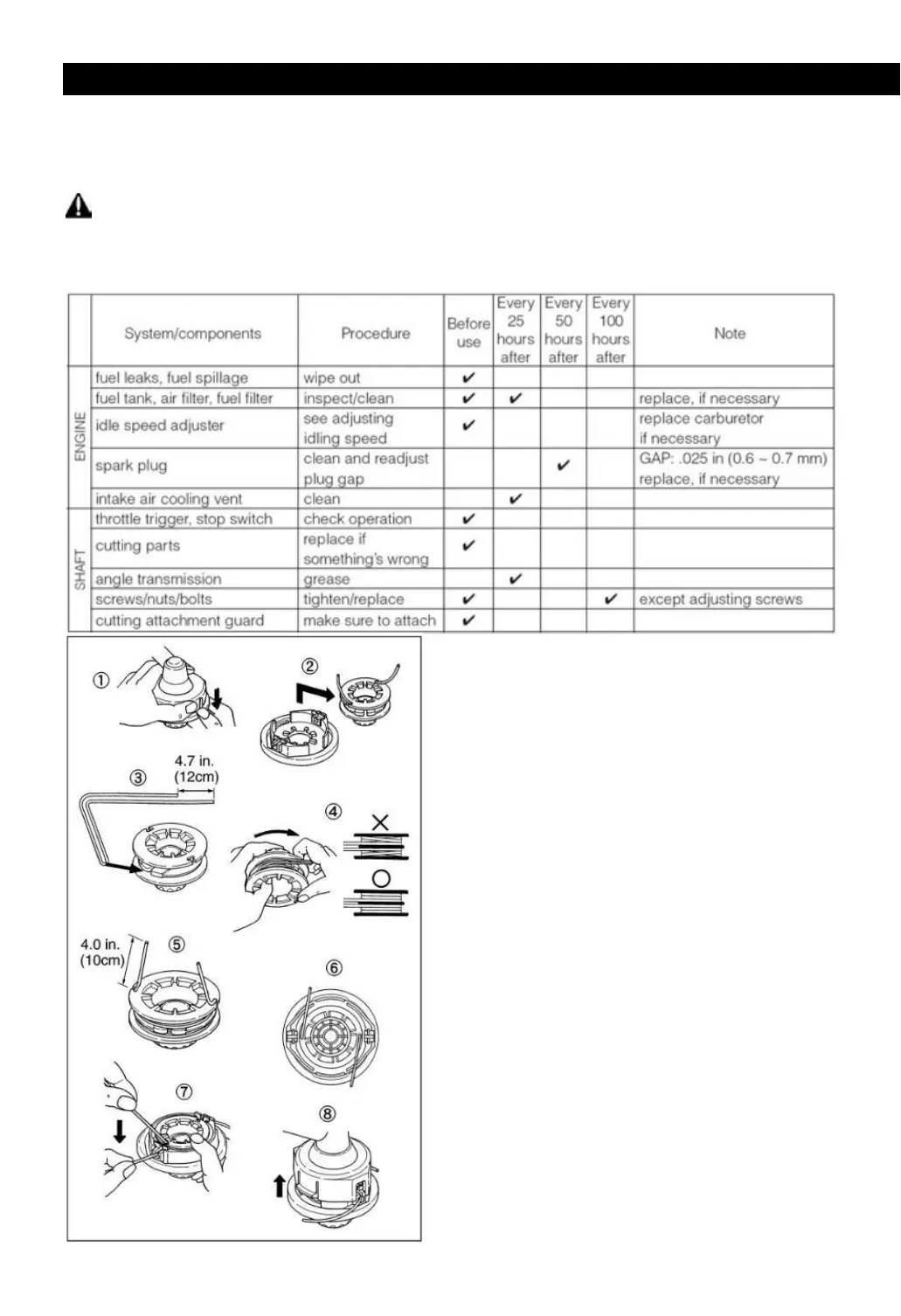

■ REFILLING TRIMMING LINE
1. For replacement line, use a diameter of
2.4mm (.095in). The spool is capable for a line up
to 6m (20ft) on the 10cm (4”) head. Avoid using a
larger line as it may cut down the trimming
performance.
2. Pinch the slotted area on the both sides of the
spool housing to unhook the bottom cap.
3. Take out the spool and pull off the old line. Put
one end of new line through the spool holes and
pull it until the length is equal between each part
of the line.
4. Wind up the line in the correct direction as
indicated on the spool.
5. Hook each end of the line in the slot on the
edge of the spool, and then put the ends through
the eyelets on the housing. Make sure that the
spring and the washers are in place.
6. While holding the spool against the housing,
pull the line ends to release them from the slot.
7. Line up the slot on the bottom cap with the
hook on the housing, press the cap against the
housing until it clicks.
